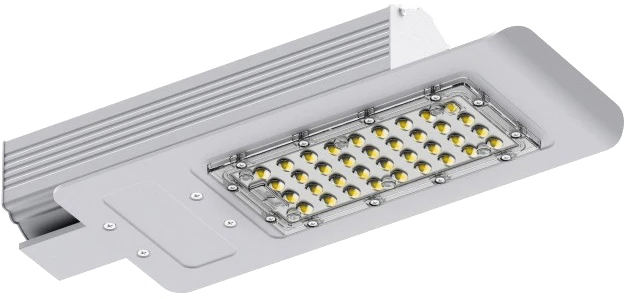

LED luminaire BL-LD-3A-2 (XPL)

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED luminaire BL-LD-3A-2

Description

LED luminaire series BL-LD-3A (XPL) is designed for lighting of highways of categories A,B,C (according to SP 52.13330.2016), city streets, as well as for external lighting of enterprises and shopping centres. The body is made of aluminium sheet by stamping method and covered with heat dissipating powder paint. The design of the luminaire excludes the formation of ice mass in winter time, and in summer time due to natural precipitation, in the form of rain, will clean the luminaire from dirt and dust. The driver is equipped with a block of protection against voltage fluctuations in the power supply network (threshold of 320-380 VAC). At the moment of connection, the driver circuitry ensures minimum inrush currents. Short-circuit protection. Mounted on a cantilever bracket or floor lamp support with a diameter of 48÷60 mm

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Type of supply current AC/DC

Degree of protection (IP) IP67

Upper operating temperature value plus 50 °C

Lower operating temperature value minus 60 °C

Color temperature 2700...6500 K

Power factor, greater than or equal to 0.9

Color rendering index (Ra), greater than or equal to 70

Supply voltage value 176...264 V

Mounting type Console

Luminous flux 4375...7350 lm

Power consumption 25...42 W

Maximum length 497 mm

Maximum width 184 mm

Maximum height 104 mm

Maximum weight 2.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
