LED luminaire BL-LD-3A-1

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

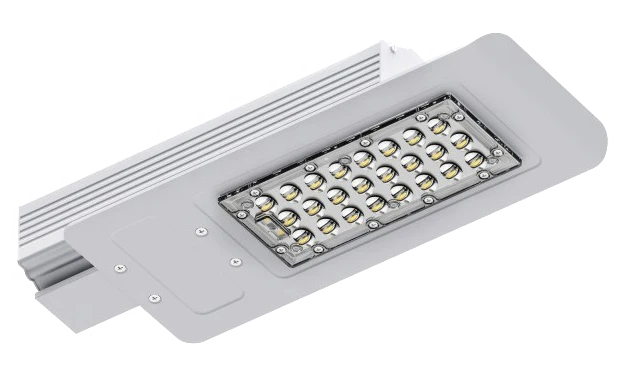

LED luminaire series BL-LD-3A is designed for lighting of highways of categories A,B,C (according to SP 52.13330.2016), city streets, as well as for external lighting of enterprises and shopping centres. The body is made of aluminium sheet by stamping method and covered with heat dissipating powder paint. The design of the luminaire excludes the formation of ice mass in winter time, and in summer time due to natural precipitation, in the form of rain, will clean the luminaire from dirt and dust. The driver is equipped with a block of protection against voltage fluctuations in the power supply network. The threshold of operation is 320-380 VAC. At the moment of connection, the driver circuitry ensures minimum inrush currents. It is installed on a cantilever bracket or floor lamp support with diameter 48÷60 mm

Technical Specifications

Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Type of supply current	AC/DC
Degree of protection (IP)	IP67
Upper operating temperature value	plus 50 °C
Lower operating temperature value	minus 60 °C
Color temperature	2700...6500 K
Power factor, greater than or equal to	0.9
Color rendering index (Ra), greater than or equal to	70
Supply voltage value	176...264 V
Mounting type	Console
Luminous flux	2900...4350 lm
Power consumption	20...30 W
Maximum length	421 mm
Maximum width	One link up to 16GB 64-bit DDR4-2400 MHz with ECC support; 16GB (for CPC1309-01); 8GB (for CPC1309-02) mm
Maximum height	98 mm
Maximum weight	2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
