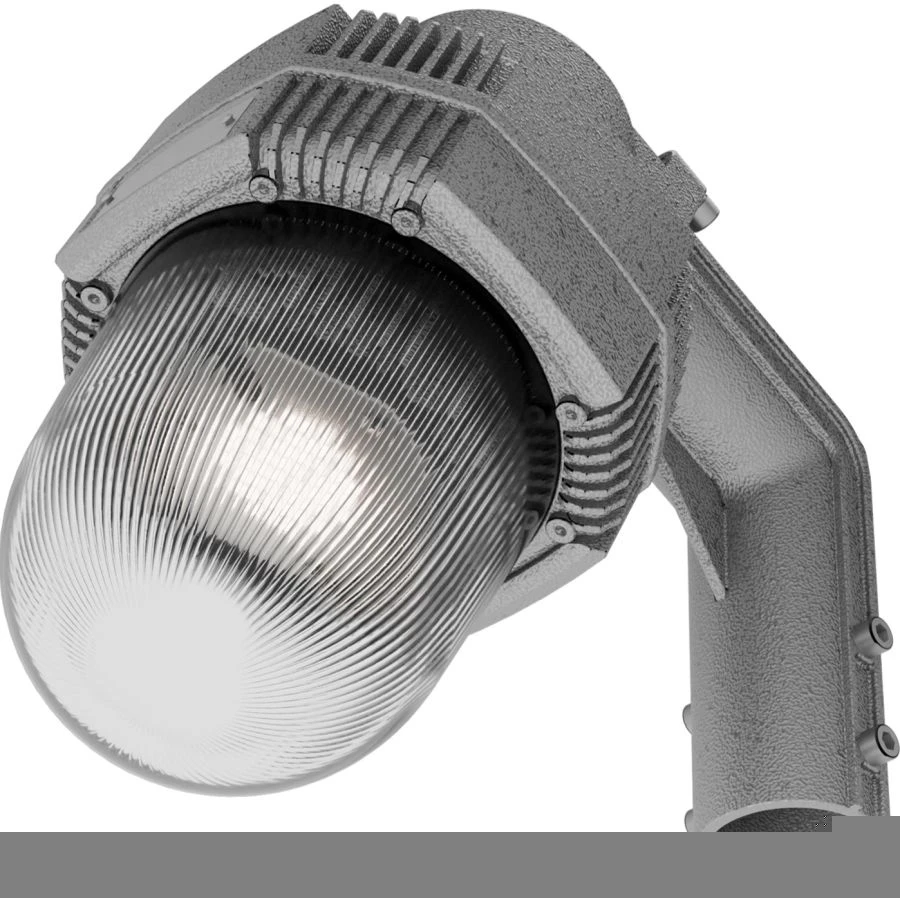

LED luminaire ATLAS ECO LED Ex/PL 25W

LED Ceiling & Wall Lights

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Series of explosion-proof luminaires ATLAS ECO LED Ex for outdoor and indoor lighting of enterprises of chemical, fuel and energy and mining industries, designed to replace luminaires with incandescent lamps up to 200 W, as well as gas-discharge DRL 80, DRL 150, MGL70, DNAT 70. The luminaires have increased mechanical strength, are characterised by the convenience of electrical connection and installation, as well as have the possibility of maintenance.

Specifications

Lamp type LEDs

Type of luminaire Point

Type of explosion protection 1 Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

Explosion-proof Armoured glass

Mounting type On the support

Type of supply current AC/DC

Climatic execution (according to GOST 15150-69) UHL1

Rated supply voltage ACE: 90V - 305V DC: 127V - 300V; DC: 12V±10%

IK code IK08/7 J

Luminous flux ripple factor <1%

Overall color rendering index 80

Correlated color temperature 3000...5000 K

Lower operating temperature value -60 °C

Upper operating temperature value 55 °C

Form Round

Diffuser material Tempered glass

Housing material Aluminum

Degree of protection (IP) IP 66

Power factor >0,95

Protection class against electric shock I

Height 365 mm

Width 150 mm

Power consumption 25...31 W

Luminous flux 3320...4180 lm

Length 160 mm

Net weight 4.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
