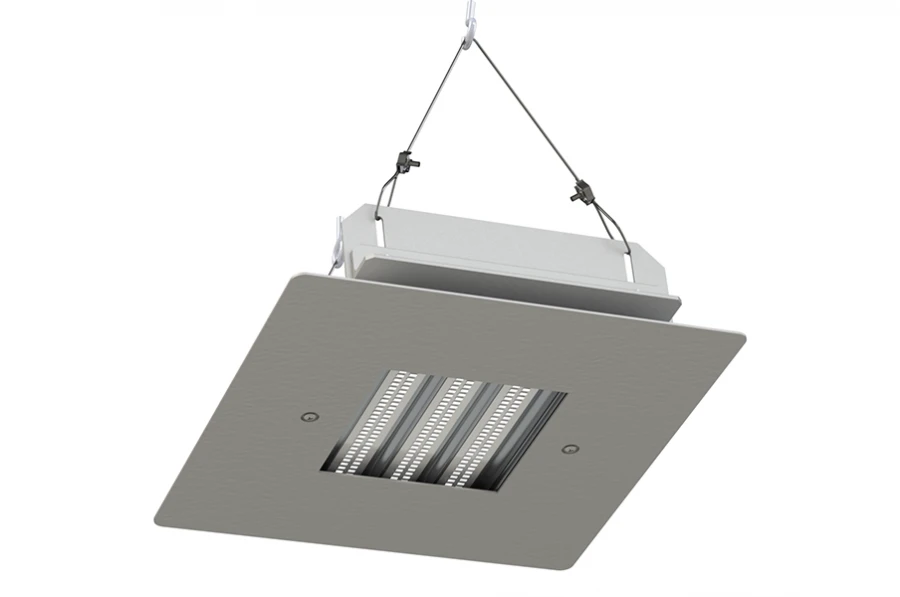

Available for ImportLED Lighting Fixture UCC 2Ex: UCC-42 A3Ex for Hazardous Area Applications
Manufacturer:Focus TD LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
LED luminaires of the USS 2Ex series: USS-42 gas station 2Ex
Specifications
Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Correlated color temperature
3000...5000 K
Type of supply current
Variable and constant
Rated supply voltage
230 V
Power consumption, W
40 W
Power factor
0.95
IK code
8
Lower operating temperature value
-60 °C
Net weight
8.5 kg
Gross weight
9 kg
Color rendering index (Ra)
80
Length
358 mm
Width
358 mm
Height
100 mm
Housing material
Anodized aluminum
Upper operating temperature value
45 °C
Luminous flux, lm
4200 lm
Pulsation factor
1 %
Climatic version
UHL1
Type by installation location
Stationary
Degree of protection (IP)
IP67
Input voltage
170...370 V
Overall dimensions, DxWxH
358x358x100 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
