Available for Import

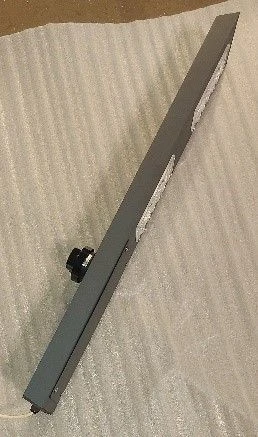

LED general purpose outdoor luminaire OTKVf-150 DIM NEMA

Diverse Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Lighting devices (luminaires) OTKVf-150 DIM NEMA are designed for lighting streets, large areas and yards, parks, pedestrian and play areas and is characterised by an attractive design, reliable fixation of LED elements, large radiator size and other technical characteristics that guarantee optimal operation of the light device and maximum illumination. Suitable for installation at a level of 4-12 metres from the ground. The luminaire has a number of advantages, such as: low power consumption, light weight, resistance to external influences, high level of protection against dust and moisture IP66, efficiency of a wide range of temperature conditions, protection against voltage fluctuations up to 400 volts, quality distribution of light streams, wear resistance and durability. The luminaires have a built-in function of monitoring the state of the light fixture, remote control of the light flux by regulating the consuming power.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Luminaire material Aluminum

Decorative coating Powder polymer

RAL color ral

Supply mains voltage 176...264 V

Mains frequency SBVVBG

Wind installation area I-IV

Operating temperature -40°C / +65°C

Active power consumption 52.4...106.4 W

Power factor At least 0.95

Supply current 700 mA

Light source 2-4 pcs. LED 12 Optics 2x6 LED module

Light output (efficiency) 120 lm/W

Luminous flux 5743...13595 lm

Color temperature, K 2700, 3000, 4000

Type of light intensity curve OTKVf-Wide lateral

Angle of inclination of the luminaire to the horizon 0...10

Protection class against electric shock I

Protection class of the luminaire IP 66

Anticorrosive coating Powder polymer

Management On/Off; DALI 1-10V; NEMA (soket 7 pin)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
