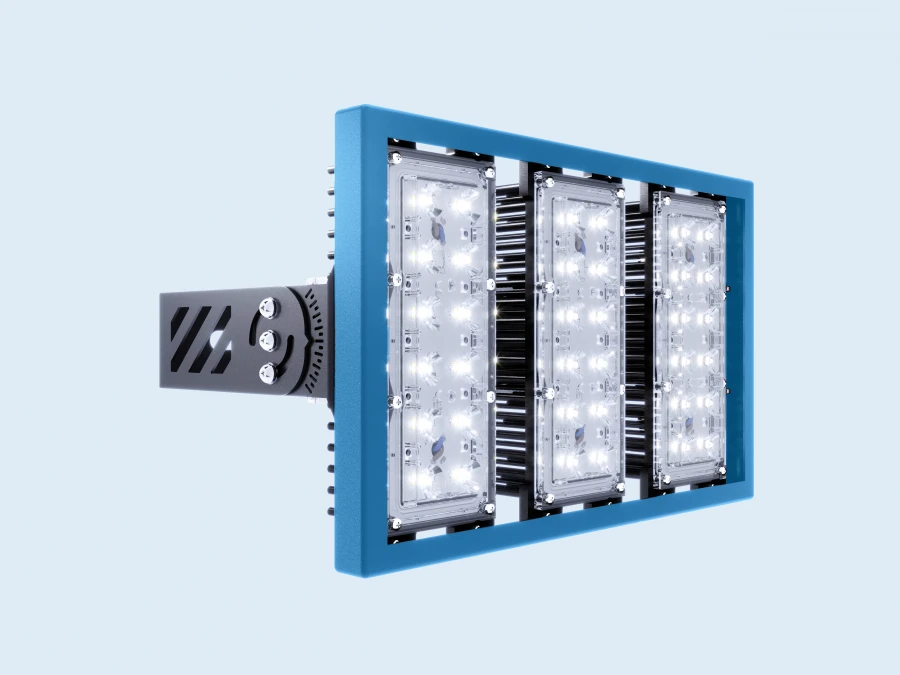

LED FENIX x36 Lighting Fixture for High-Temperature Environments

LED Lighting Fixtures

Manufacturer: LEDVIZOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

It is an optimal solution for lighting hot shops with temperatures up to +70C. It has a degree of protection against moisture and dust IP67. One of 8 types of optics can be installed on the device, and they can also be combined on one device. Large area of needle heat sinks and diodes loaded with a small current allow to obtain high efficiency - up to 143 lm/W and at the same time effectively dissipate heat.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than

Light output, lm/W, not less than

125

Degree of protection (IP)

IP67

Type by installation location

stationary, outdoor, on a bracket

Climatic version

UHL1

Pulsation factor

5 %

Luminous flux, lm

10700...11600 lm

Upper operating temperature value

70 °C

Power consumption

81 W

Housing material

aluminum, polymer coated steel

Height

120 mm

Width

202 mm

Length

324 mm

Net weight

3.7 kg

Lower operating temperature value

-40 °C

Protection class against electric current

Correlating color temperature (CCT)

2700...6500 K

Power factor

0.95

Rated supply voltage

230 V

Type of supply current

Variable

Designated service life

B1/B8 2100/900 MHz year

Warranty period of operation

5 year

Type of conditional light intensity curve in the equatorial plane

circular

Type of light intensity curve in characteristic meridional planes

L/H/D/S

Light distribution class

Mains frequency

SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
