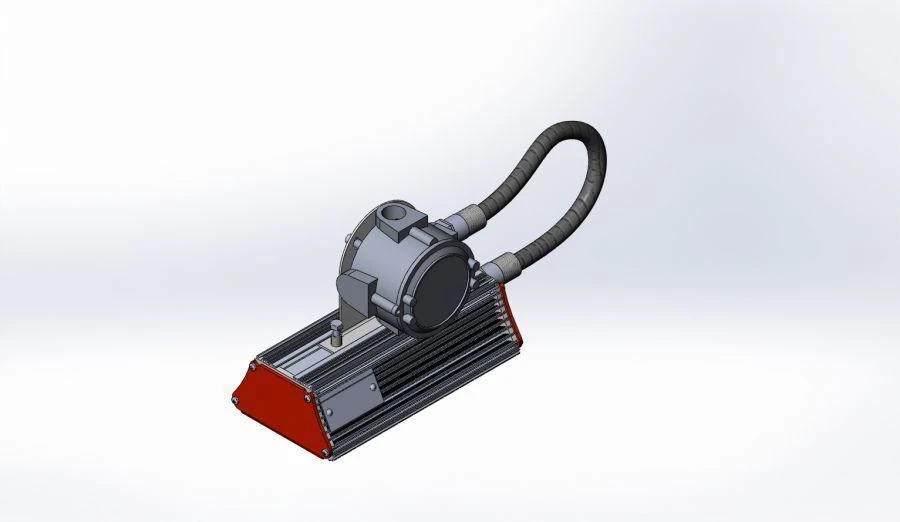

LED explosion-proof luminaire with terminal box Sakhalin 24.5000.22 Ex T6, tube mount

LED Spotlights and Luminaires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED explosion-proof luminaire with terminal box Sakhalin 16.3340.15 Ex T6, tube mount LED explosion-proof luminaire with terminal box Sakhalin 32.9820.50 Ex T6, tube mount Explosion-proof LED luminaire with terminal box Sakhalin 32.10850.58 Ex T5, pipe mounting

Description

Designed for stationary installation for illumination of explosive industrial premises and outdoor installations.

Field of application:
- explosive areas of classes 1 or 2 when a gas mixture is likely to be present, categories IIA, IIB, IIC;
- hazardous areas of classes 21 and 22 with probable presence of combustible dust, category IIIC.

Group II electrical equipment is used for gas environments, Group III for dust environments (except mines).
Degree of protection IP67

Specifications

Protection class against electric current I

Power factor 0.97

Power consumption, W 22 W

Rated supply voltage 230 V

IK code 9

Radiation color white

Height 65 mm

Width 118 mm

Length 377 mm

Color rendering index (Ra) 75

Type of luminaire Stationary

Pulsation factor 1 %

Light distribution class n; BCC type: D.G, W, K, U

Operating temperature range 40...45 °C

Luminous flux 5000 lm

Net weight 4.4 kg

Color temperature 3500 K

Diffuser material transparent polycarbonate

Scattering Average

Type of light distribution of the spotlight symmetrical

Housing material anodized aluminum profile

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
