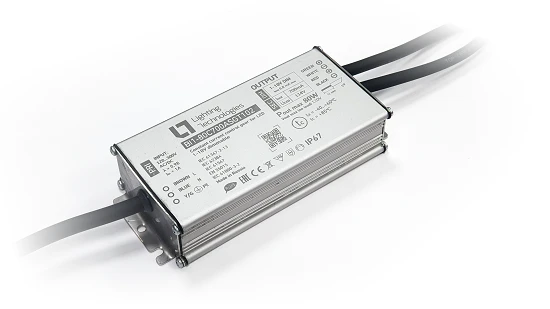

LED driver LT BI1-80

Series of dimmable drivers with fixed output currents; IP67 housing in independent design, two-stage resonant topology with active CCM; fully isolated standard 1-10V dimming interface; wide input voltage range from 120-300 AC/DC; 4kB L-N and 6kB L/N-PE surge protection; no light output ripple - less than 5% in the range up to 300 Hz; protection against short-circuit, overload and load interruption; meets the requirements of international standards in the field of safety and EMC; suitable for use in emergency lighting systems with a central battery; for use in luminaires I and II class of protection against electric shock; more than 50 000 MTBF.
