Available for Import

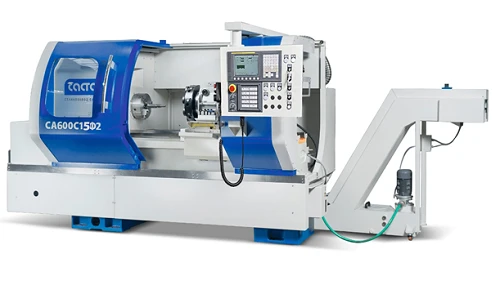

Lathe with LSU CA600C15F2

CNC Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

- Lathes with OSU (Operative Control System) - this is a new generation of equipment, which replaced the classic universal machine tools with digital indication device (DCI).
- OSU machines offer machining capabilities comparable to those of numerically controlled machine tools.
- The latest Fanuc based operational control system provides the functionality of a CNC system while maintaining operator ease of operation and manual override capability.
- Rigid design: solid cast iron bed, wide prismatic sliding guides, five precision angular contact bearings in the spindle unit, servo feed drives and ball screws instead of mechanical kinematic links - all this guarantees accuracy and reliability of the machine.
- Equipping the machine with a turret (up to 8 tools) with vertical or horizontal axis of rotation with automatic tool change (option) instead of a manual toolholder significantly expands the technological possibilities of the machine.

Specifications

Type of product according to PP RF 616 Turning and screw-cutting machines (universal, with CNC, CNC)

Length 3877 mm

Height 2170 mm

Weight 2800 kg

Width (without remote control) 1616 mm

Width (with remote control) 2220 mm

The largest diameter of the workpiece, to be mounted above the bed 560 mm

The largest diameter of the workpiece, to be machined above the slide 360 mm

Movement in the X axis (transverse movement of the slide) 278 mm

Z-axis travel (longitudinal movement of the slide) 1446 mm

Maximum speed spindle speed 2800

Maximum spindle torque 783/978

Main engine power 15/18.5 kW

Spindle speed control Stepless, 2 ranges

Diameter of the spindle bore for the bar 102 mm

Spindle end ?11

Attachment of the turret tool VDI40

Number of tool slots 8 (4* optional)

Number of instruments 4 pc

Section of toolholder 25x25 mm

Moving the tailstock quill 200 mm

Diameter of tailstock quill 100 mm

Tailstock quill taper Morse 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
