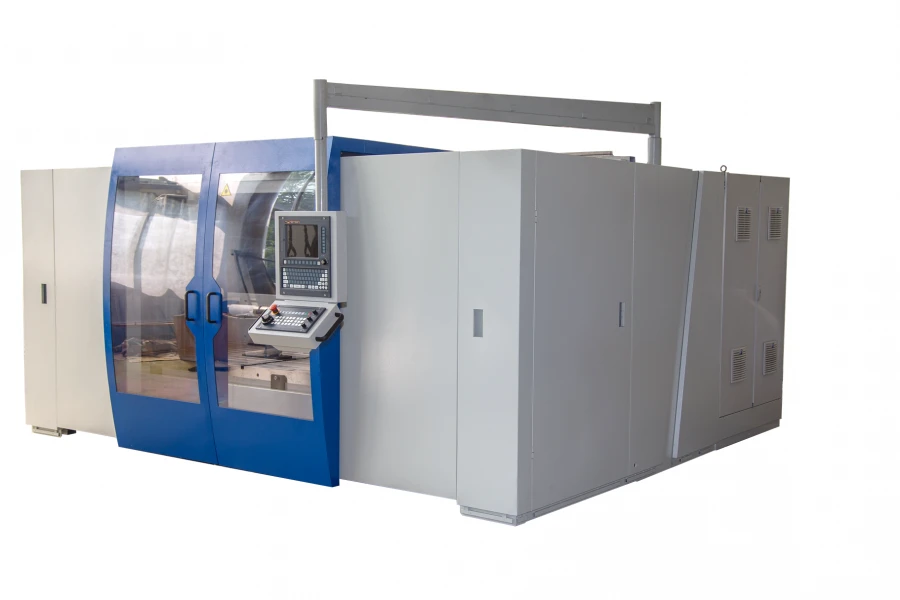

Laser technological complex LK-5V

Laser technological complexes for surface treatment of large-sized parts on the basis of CO2 laser with power of 5 kW.
Laser type:Multi-channel CO2 laser
Radiation power:5,0 kW
Power control limits:0,5-5,0 kW
Diameter of the radiation spot in the treatment zone:5-20 mm
Number of beam arm mobility stages:5
Workpiece manipulator:At the customer's request, a workpiece manipulator is installed, it is also possible to complete with a rotary table for rotation of parts weighing up to 1 ton and with a diameter of up to 3 metres around the vertical axis and up to 1 metre around the horizontal axis.
X, Y, Z machining area:2500 x 1000 x 500 mm
Linear machining speed:10-20 mm/sec
Power consumption:80 kW
Laser mixture consumption (CO2; N2; He) l/h per 1 kW:4
Operating personnel:2 persons per shift
Occupied area:37.5 m2
Laser complexes LK-5V can be equipped with additional devices that expand the possibilities of laser processing application. 1. Device for laser...
