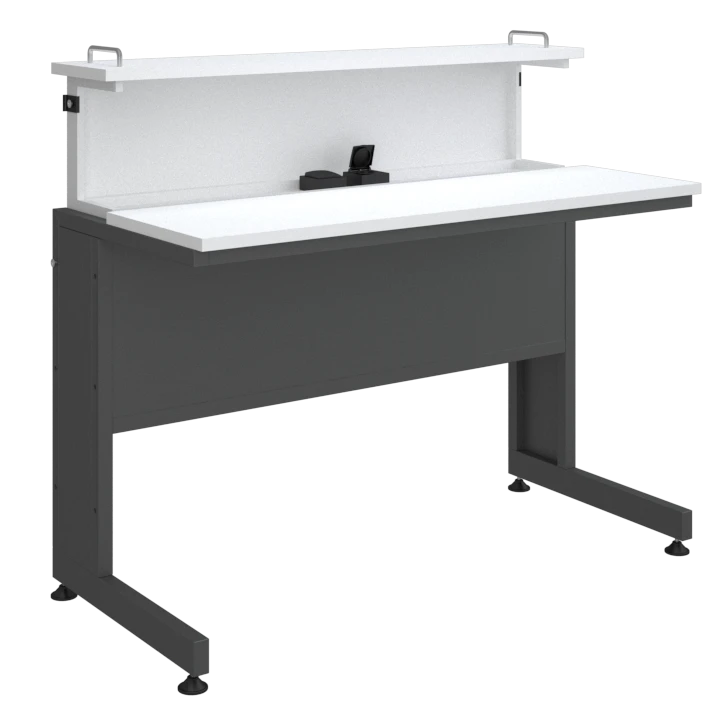

Laboratory Table with Pull-Out Unit for Efficient Workspace Management

Size 1200x600x750mm. Frame 175x568x712mm made of cold-rolled profile pipe 30x30x1,5mm, 60x30x1,5mm and cold-rolled sheet 1.0mm thick.Extendable block Made of profile pipe 30x30x1,5mm and cold-rolled sheet 1.0mm thick. It consists of welded frame and welded metal box (front screen).

The frame is fitted with spring-loaded metal bushings with plastic guides. The frame of the pull-out unit is 1105x617mm. The sides of the frame are welded in the form of letter-F without visible welds.Electric shelf The shelf is made of cold-rolled sheet with thickness of 1,0mm with dimensions 1110x160mm.

Also, for fixing the electric wire the bends are sawed out in the opposite direction to the other bends on 15mm of each edge. For fastening of two sockets ??-42? in the centre of a shelf, 8 holes in diameter of 5 mm are executed., on ends of a shelf 4 holes in diameter of 8 mm are executed for fastening of a shelf to the MC of a pull-out block.

The table top LDFP 22 mm. bottom and top is covered with plastic.
