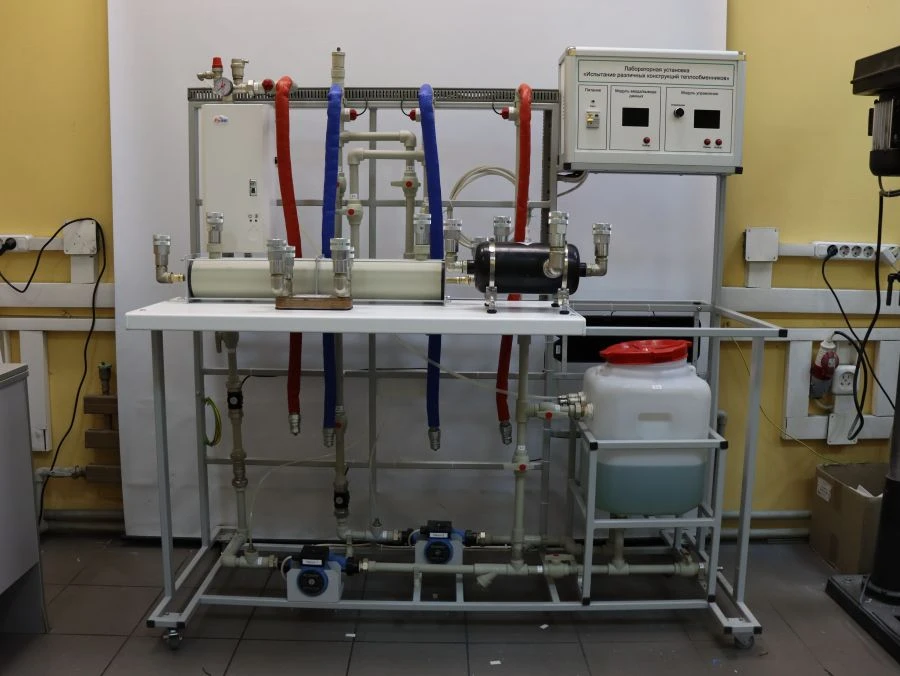

Laboratory Setup for Testing Various Heat Exchanger Designs ELB-171.022.02 for Educational Purposes

Designed for carrying out laboratory works on course "Heat engineering" in the system of secondary and higher professional education. education. Technical characteristics Stand dimensions: Length - 1600mm; Width - 700 mm; Height - 1600mm.

Highest power consumption: 3.5 kW Power supply from AC mains: Voltage 220V, frequency 50Hz. Composition of the stand. The laboratory installation is a frame base made of metal profile painted with powder paint.

The base has swivelling wheel supports with brakes. A hydraulic system consisting of hot and cold circuits is mounted on the frame base. Possibilities of the laboratory installation: -Testing of heat exchangers in direct-flow and counter-flow modes.

-Measurement of temperature at the inlet and outlet of the heat exchanger under study in hot and cold circuits. -Measurement of the flow rate of heat transfer fluids. -Determination of heat transfer and heat transfer coefficients.

-Determination of the efficiency of plas...
