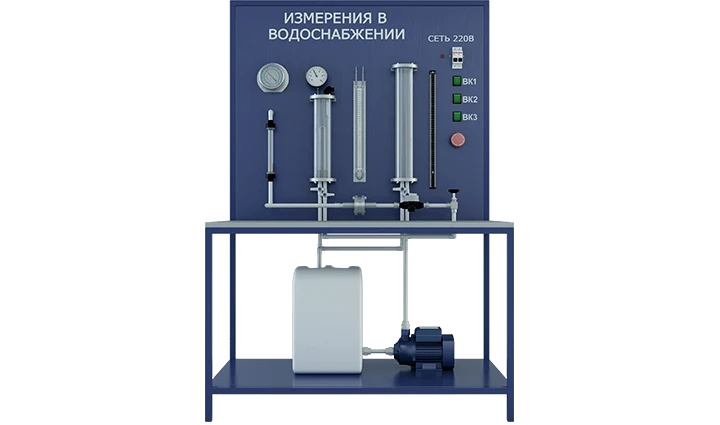

Laboratory set-up for studying methods of pressure, flow and temperature measurements in water supply systems (LWC-IV)

Study of various methods of measurement of basic parameters in water supply systems.
List of works to be carried out on the training stand:
- Familiarisation with the device of instruments and methods of measuring temperatures.
- Basic characteristics of thermoresistive transducers. Temperature measurement in manual and automatic mode.
- Familiarisation with the device and methods of pressure measurement.
- Arrow strain gauge.
- Strain diaphragm type pressure gauges.
- Differential pressure gauges.
- Study of volumetric method of water flow measurement.
- Study of the method of measuring the flow of water according to the readings of the water quantity meter.
- Study of the method of measuring the flow of water by the value of pressure drop on the measuring diaphragm.
- Study of the method of measuring the flow rate of water by means of rotameter.
- Capturing the characteristics of a pump
