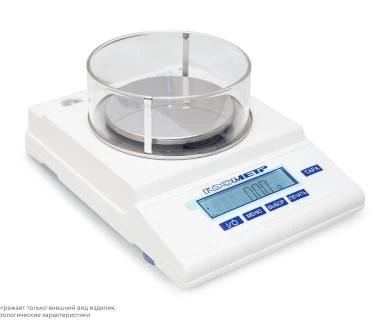

Laboratory scales ??-150

The scales are designed for static measurements of the mass of objects, materials, bulk and liquid substances at enterprises of various industries, agriculture, post offices, warehouses, etc.
The scales can be used in the sphere of state regulation of ensuring the uniformity of measurements.

The principle of operation of the scales is based on the conversion of the force load acting on the scales, created by the object being weighed, into the deformation of the elastic element of the weighing sensor, on which strain gauges are applied. The deformation of the elastic element causes a change in the electrical resistance of the strain gauges, which is converted into an analogue electrical signal. The electrical signal, proportional to the mass of the weighed object, is fed to the input of the secondary converter for processing and indication of measurement results.
The scales include: weight-measuring strain-gauge sensor, indicator, load-receiving and load-transmitting devices. Load-receiving device...
