Laboratory research complex "Hydraulic drive of lifting and transporting machines" SGU-GP-PTM-KR-016-15LR-01

Laboratory research complex is designed for 15 experimental laboratory works on the study of hydraulic drives of hoisting mechanisms by a subgroup of 2, 3, 4 people.
The complex consists of the module of the hydraulic equipment of the complex and the module of the lifting mechanism. The complex allows to determine the energy, load and adjustment characteristics of hydraulic drives. The information-measuring system allows to determine pressures at different points of the system, flow rates (volumetrically), speeds of output links, time, power at different points of the system. The hydraulic scheme to be investigated is developed and assembled from the elements installed on the complex by connecting them with hoses with quick couplings that ensure assembly.

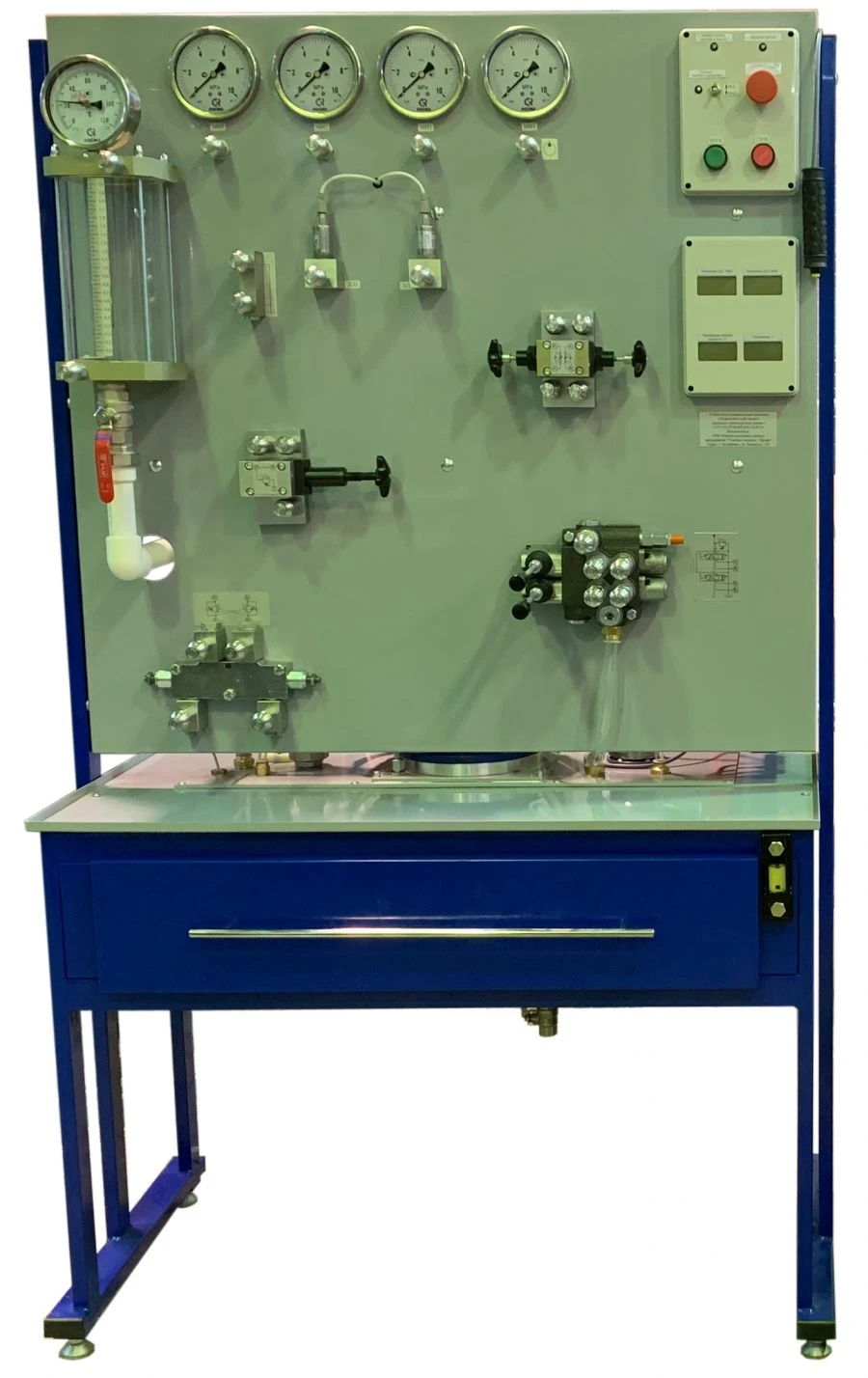

Elements, from which the required hydraulic scheme is assembled, are placed on the panel of the complex, they are easily accessible for the assembly of the hydraulic scheme
