Laboratory installation "Testing of different designs of heat exchangers" ELB-171.022.02

Designed for carrying out laboratory works on course
"Heat engineering" in the system of secondary and higher professional education.
education.
Technical characteristics
Stand dimensions:
Length - 1600mm;
Width - 700 mm;
Height - 1600mm.
Highest power consumption: 3.5 kW
Power supply from AC mains:
Voltage 220V, frequency 50Hz.
Composition of the stand.

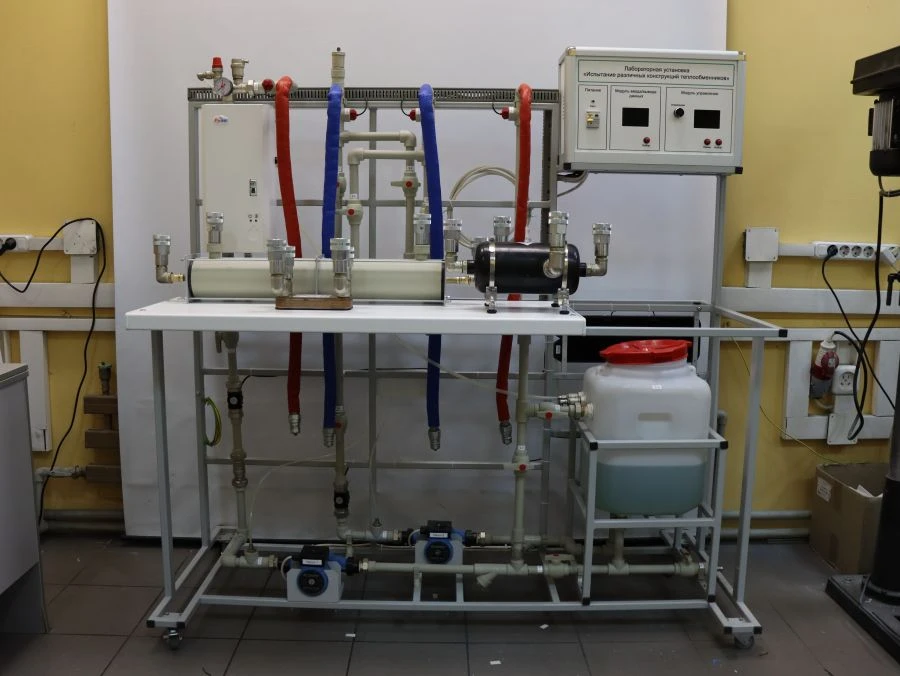

The laboratory installation is a frame base made of metal profile painted with powder paint. The base has swivelling wheel supports with brakes. A hydraulic system consisting of hot and cold circuits is mounted on the frame base.
Possibilities of the laboratory installation:
-Testing of heat exchangers in direct-flow and counter-flow modes.
-Measurement of temperature at the inlet and outlet of the heat exchanger under study in hot and cold circuits.
-Measurement of the flow rate of heat transfer fluids.
-Determination of heat transfer and heat transfer coefficients.
-Determination of the efficiency of plas...
