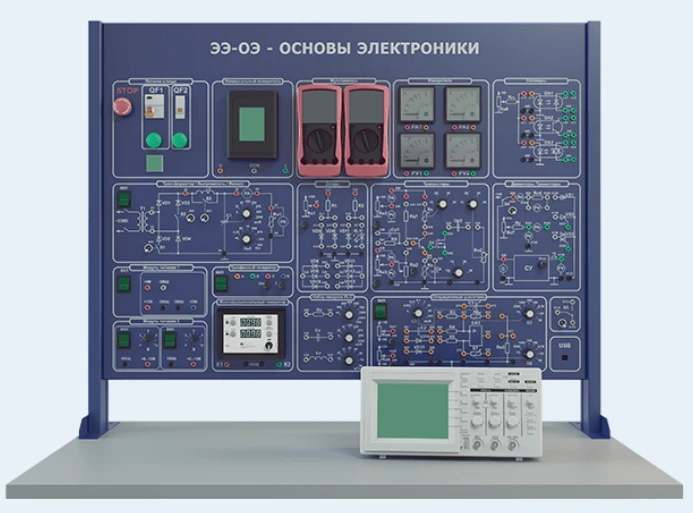

Laboratory installation for studying the basics of electronics (EE-OCE )

Designed to perform work on the main sections of electronics. Allows you to study the characteristics of diodes, stabilitrons, bipolar and field-effect transistors, dinistors and trinistors, optocouplers. Contains the necessary elements for studying the operation and characteristics of various rectifier circuits and smoothing filters, circuitry of devices based on operational amplifiers, the study of steady-state and transient modes in DC, AC single-phase and three-phase voltage circuits, circuits with non-sinusoidal signals. List of works performed: - Study of voltampere characteristics of diode, stabilitrons, LED, bipolar transistor, field effect transistor- Study of characteristics of parametric stabiliser- Study of single phase single semi-periodic rectifier and bridge rectifier- Study of three phase three diode rectifier and bridge rectifier- Study of smoothing filters in single phase rectifiers and three phase rectifiers
