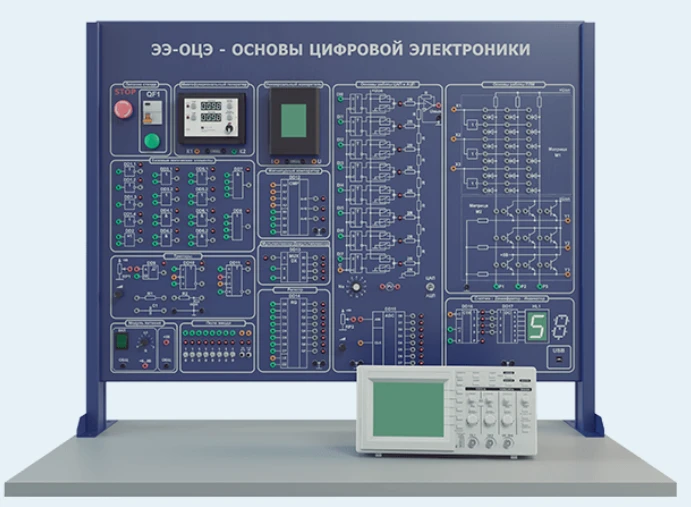

Laboratory installation for studying the basics of digital electronics (EE-OCE )

Designed to perform a set of laboratory works on the main sections of digital electronics. Allows you to study the characteristics and operation of basic logic elements and circuits based on them, triggers, registers, counters, magnitude comparators, decoders. Contains the necessary elements for the study of analogue-to-digital, digital-to-analogue converters, programmable logic matrices and other digital circuits. List of work to be done: -Study of basic logic elements and their characteristics; -Study of combinational nodes of digital devices; -Study of timing characteristics of combinational nodes; -Study of half adders and adders; -Study of triggers; -Study of counters; -Study of registers; -Study of digital chip based oscillators; -Study of encryptors and decryptors; -Study of multiplexers and demultiplexers; -Study of magnitude comparator; -Study of analogue-to-digital converter
