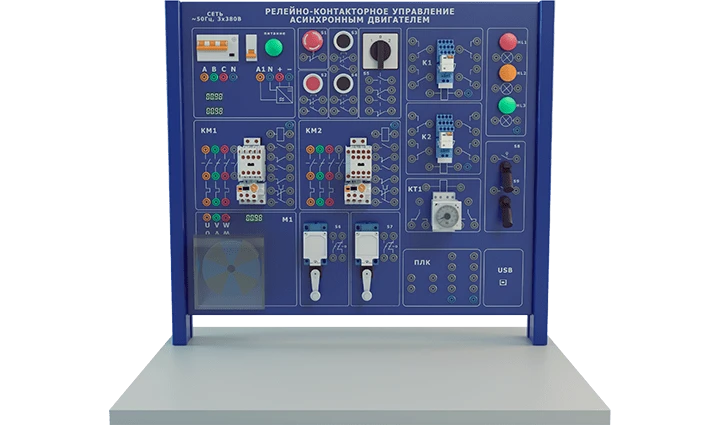

Laboratory installation for studying relay-contactor control of induction motor (extended modification) (EE-RKU-AD2)

Study of relay contactor control schemes for starting, braking, reversing of squirrel cage induction motor. Study of motor thermal protection, motor control schemes in function of time, control using position sensors. Mounting is carried out by the conductors from the delivery set with quick-release connectors of "Banana" type. Measurement and display of input voltage and current values, motor speed. Possibility to integrate the stand into workshops in the direction of "Automation of technological processes". The list of works to be performed on the training stand: - Study of the scheme of thermal protection of induction motor on the basis of thermal relay - Study of the scheme of direct start of induction motor with squirrel cage rotor - Study of the scheme of induction motor start with starting resistors - Study of the scheme of induction motor start with starting resistors as a function of time
