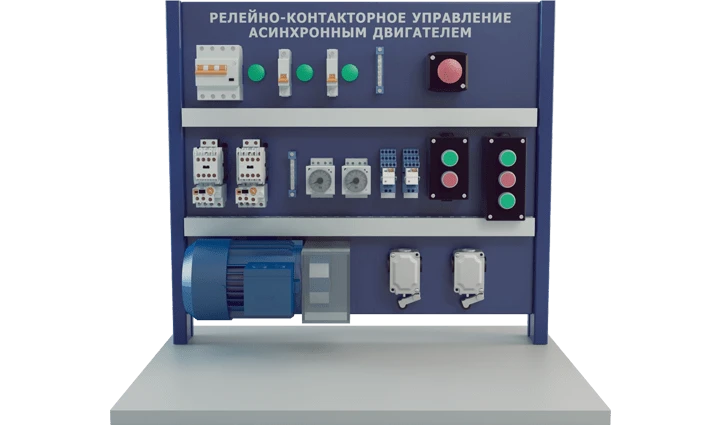

Laboratory installation for studying relay contactor control of induction motor (EE-RKU-AD1)

Study of relay-contactor control schemes for starting, braking, reversing of asynchronous motor with squirrel-cage rotor. Study of thermal protection of the motor, motor control schemes as a function of time, control using position sensors. Installation of circuits for work is carried out with screwdrivers and conductors from the delivery set. The list of works to be performed on the training stand: - Study of thermal protection circuit of induction motor on the basis of thermal relay - Study of direct starting circuit of induction motor with squirrel cage rotor - Study of starting circuit of induction motor with starting resistors - Study of starting circuit of induction motor with starting resistors as a function of time - Study of direct starting, stopping and reversing circuit of induction motor with squirrel cage rotor
