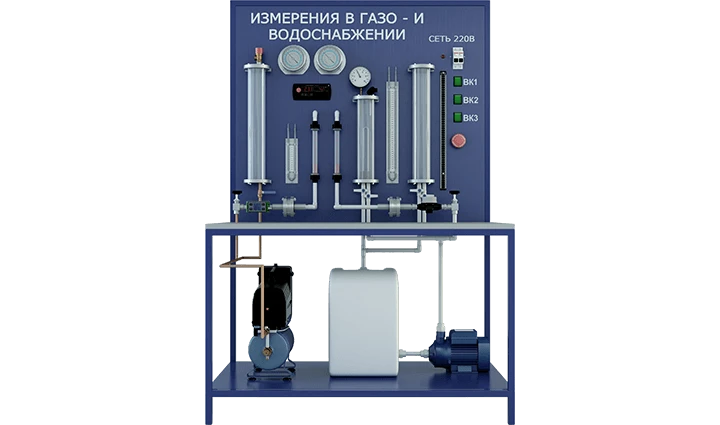

Laboratory installation for measuring temperatures, pressures and flow rates in gas and water supply systems (Housing and Commun

Study of various methods of measurement of basic parameters in water and gas supply systems.
List of works to be carried out on the training stand:
- Familiarisation with the device of devices and methods of measuring temperatures.
- The main characteristics of thermoresistive transducers. Temperature measurement in manual and automatic mode.
- Familiarisation with the device and methods of pressure measurement.
- Arrow strain gauge.
- Strain diaphragm and piezoresistive type pressure transducers.
- Differential pressure gauges.
- Study of volumetric method of water flow measurement.
- Study of the method of measuring the flow of water by the value of pressure drop on the measuring diaphragm.
- Study of the method of measurement of gas flow rate by cut-off volume method.
- Gas flow measurement instruments
- Taking pump and compressor characteristics
- Study of the device and purpose of pressure reducing valve
