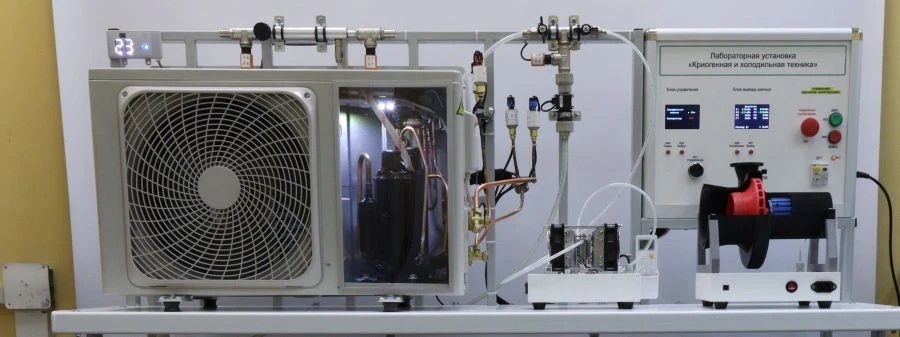

Laboratory installation "Cryogenic and refrigeration engineering" ELB-171.040.02

Laboratory stand "Cryogenic and refrigeration engineering" provides laboratory-practical classes in institutions of primary vocational, secondary vocational and higher vocational education.
The laboratory bench "Cryogenic and Refrigeration Engineering" provides laboratory-practical classes in institutions of primary vocational, secondary vocational and higher vocational education, for obtaining basic and advanced professional knowledge and skills.
Technical characteristics
Dimensions:
Length - 1600 mm;
Width - 700 mm;
Height - 1600 mm.
Power supply from AC mains:
Voltage 220V, frequency 50Hz.
Composition of the bench.
The laboratory table consists of a base and a table top. The table base is a welded structure made of a metal profile covered with powder paint. The base is equipped with "Wheel" stops with a mounting pad 60×60 mm and wheel diameter 50 mm.
The table top, which is made of dielectric material, is rigidly fixed on the base of the laboratory table. On the laboratory table are placed:
1. Model of vapour-compression refrigeration unit. The model is equipped with sensors...
