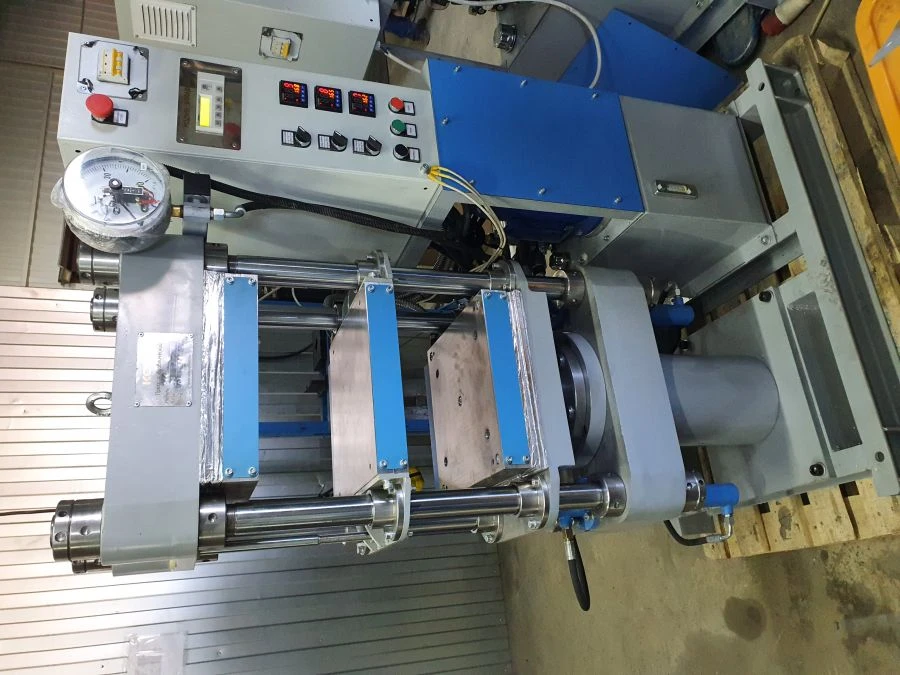

Laboratory hydraulic vulcanising press for vulcanisation of RTI 400x400-2E 32 tonnes

Laboratory hydraulic vulcanising press for RTI vulcanisation.

Press control: Controller with touch screen control panel

Plate material: Brushed stainless steel with heat treatment

Protection: Cover that completely encloses the working space of the press:
1) with protective durable glass;
2) with a door for unloading parts;
3) with door opening sensor with emergency stop function for moving parts. The covers are made to prevent access to the internal elements; there are no openings more than 10 mm on the outside to prevent any objects from penetrating inside

Force, tonnes - 32
Plate size, mm 400x400
Gap between slabs, mm 180
Number of floors 2
Number of slabs, pcs. 3
Power of one slab, kW 4,2
Thickness of the slab, not less, mm: 54
Access for oil change: from the front
Piston diameter, mm: 150
Number of columns, pcs.: 4
Type of thermoregulators: PID regulators
Plate temperature accuracy, °C: ±2
Maximum temperature, °C...
