Available for Import

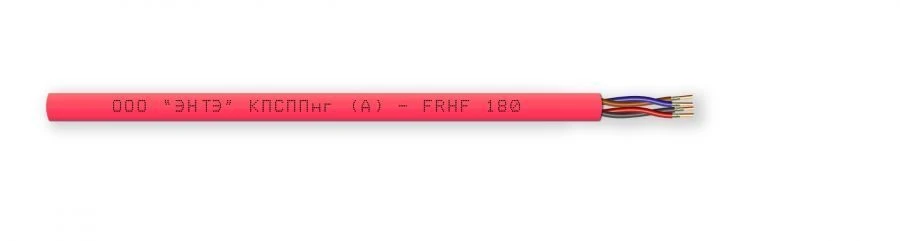

KPSPPPng(A)-FRHF (KMPPPng(A)-FRHF)

Communication Cables & Wires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Fire-resistant symmetrical pair twisted cables for data transmission, with single-wire copper conductive cores with cross-section from 0,20 to 2,50 mm², with thermal barrier of conductive cores in the form of winding of two mica-containing tapes, with the number of twisted pairs from 1 to 12 or two parallel pairs, with insulation and sheathing of polymer composition, halogen-free, designed for operation at voltages up to 300 V inclusive alternating current frequency of 50 Hz.

Specifications

Ohmic asymmetry of cores in a pair 2 %

Wave impedance 100 ohm

Working capacity 6100000000

Electrical resistance of the circuit (two conductors of a pair) 192 ohm

Electrical resistance of core insulation 100 ohm

Test voltage between conductors 1 kV

Attenuation factor 2.5

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
