Available for Import

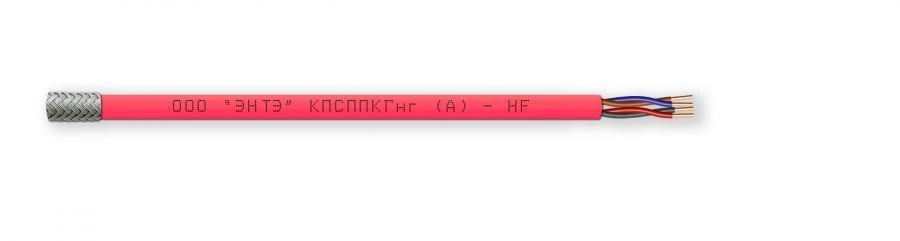

KPSPPKPGng(A)-HF (KMPPKPGng(A)-HF)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Cables armoured symmetrical pair twisting for data transmission, with single-wire copper conductive cores with cross-section from 0,20 to 2,50 mm², number of twisted pairs from 1 to 12 or two parallel pairs, with insulation and sheathing made of halogen-free polymer composition, with armour in the form of a braid of galvanized steel wires, without a protective hose, designed for operation at voltages up to 300 V inclusive alternating current frequency of 50 Hz.
Specifications
Ohmic asymmetry of cores in a pair
2 %
Wave impedance
100 ohm
Working capacity
6100000000
Electrical resistance of the circuit (two conductors of a pair)
192 ohm
Electrical resistance of core insulation
100 ohm
Test voltage between conductors
1 kV
Attenuation factor
2.5
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
Contact Us
Contact Our Import Specialists
