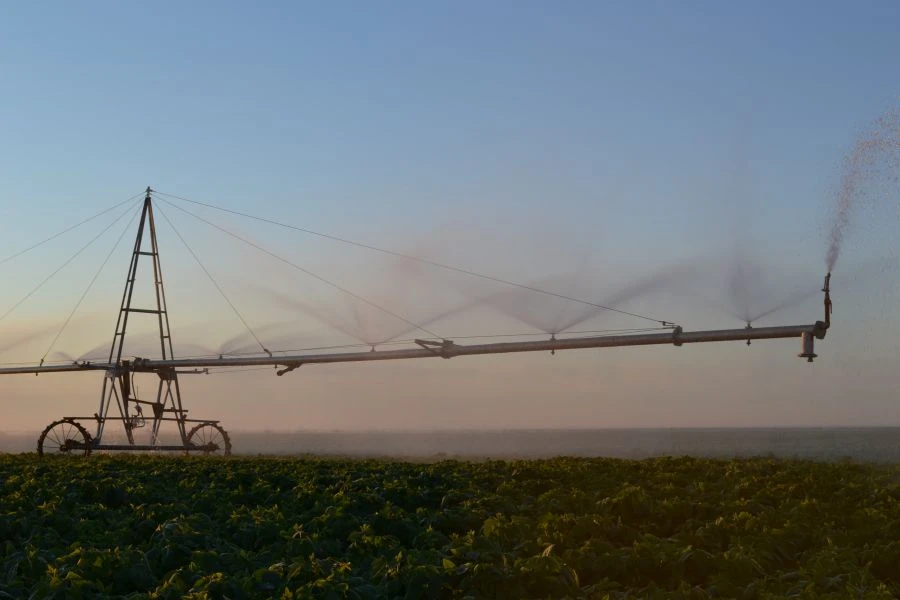

KORVET" Rain Machine DMM-19B-542 for Low-Pressure Irrigation Applications

The sprinkler machine "CORVET" is designed to work at low pressure (0, 35-0, 4 MPa), which allows up to 45% reduction of economic costs for irrigation. Type of machine - circular, multi-supported machine. Water intake - from a hydrant of a closed irrigation system.

The drive of machine movement is hydraulic, individual on each trolley. Type of emergency protection - hydraulic, highly efficient. Distance from the ground surface to the pipeline - 2, 2 metres.

Sprinkling is carried out by deflector nozzles circular and sectoral (five per span) with a special arrangement scheme - improved irrigation, reduces the formation of ruts (option - completion of lowering depending on the irrigated crops). Disc shutter at the inlet of the irrigation pipeline - allows to optimise the network operation at group use of machines. The sprinkler is adapted for operation at reduced inlet pressure in the pipeline and, by dividing the water flow, is equipped with a set of equipment "low-pressure mode" and "dry running".
