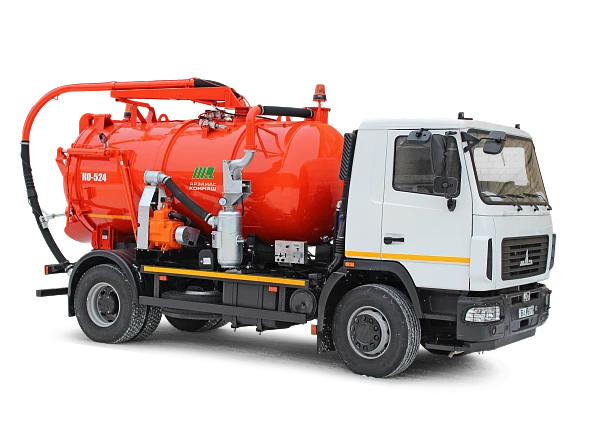

KO-524 Sewage Vacuum Truck for Efficient Waste Management

Available for Import

KO-524 Sewage Vacuum Truck for Mechanized Waste Management Solutions

Municipal Road Vehicles

Manufacturer: KOMMAШ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machine sludge collector KO-524 is designed for mechanised cleaning of rainwater inlets (manholes) of storm and sewerage networks, cesspools, transportation and unloading of liquid waste that does not contain aggressive, explosive and flammable substances. The equipment mounted on the chassis consists of: tank, vacuum pump, suction boom with suction hose, controls. The suction boom is mounted on top of the tank on a pivoting support, controlled by remote control.

The sludge tanker is equipped with an electric system of sludge level control in the tank. The sludge is discharged by lifting the tank. Additionally, in the front part of the tank is installed a system of "hydroflushing" - a comb with nozzles, through which water is supplied at a pressure of 40-50 bar to flush the sludge out of the tank.

Temperature regime of operation from minus 20°? to plus 40°? (when equipped with compartments for water from 0° to plus 40°).

Specifications

Type of product according to PP RF 616

Vehicles for public utilities and road maintenance

Engine type

diesel

Base chassis type

maz-5340c2; maz-534025

Height

3500...3700 mm

Width

2500...2550 mm

Machine type

sludge truck

Length

7100...7400 mm

Weight of special equipment

3500/3900

Machine kerb weight

10200...10820 kg

Tank capacity

6,2/8,2

Vacuum pump capacity

720/1500

Cleansing, depth

6 m

Technically permissible maximum weight of the machine

19000...20500 kg

Highest vacuum created by the vacuum pump in the tanker

0;085(-0;005) mpa

Maximum noise level at the operator's workplace

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
