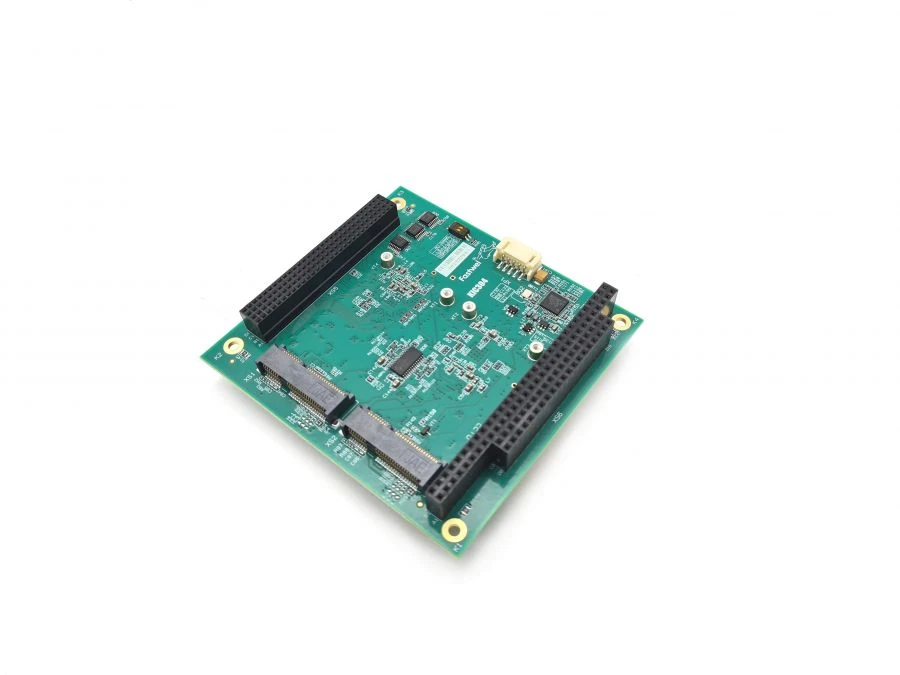

KIC304 Expansion Module for Mini PCI Express Connectivity Available for Import

KIC304 Expansion Module for Connecting Mini PCI Express Modules

Data Processing Boards
Manufacturer: DOLOMANT OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Expansion module KIC304 IMES.465635.020 (hereinafter referred to as the product) is designed to connect up to two modules in Mini PCI Express format to the processor module with PC/104 (PCI) system bus. The product converts the parallel PCI bus into PCI Express by means of a "bridge", then switches two PCI Expresses and converts them into two USBs by means of a SWIDGE switch (switch/bridge). The resulting signals are connected to two Mini PCI Express slots.

Specifications

PCI interface
Armoured glass
MiniPCI-E interface for connecting expansion cards
PCI-E Gen1 cards supported; USB 2.0 cards supported
SIM card connector
connector for Micro-SIM (3FF) size SIM card; two ports available on the board
USB 2.0 interfaces for connecting external devices
Support USB 1.1, USB 2.0 (HS, FS, LS); up to 480Mbps exchange rate
Power supply voltage
4.75 to 5.25 V
Maximum current consumption
350 mA (excluding external circuit power supply)
Weight of the Module, not more
0.1 kg
Overall dimensions, mm, not more
(95.9±0.8) x (90.2±0.8) x (23.3±1.0)
Temperature range of the module
minus 40 °C to plus 85 °C
