IP30 universal controller

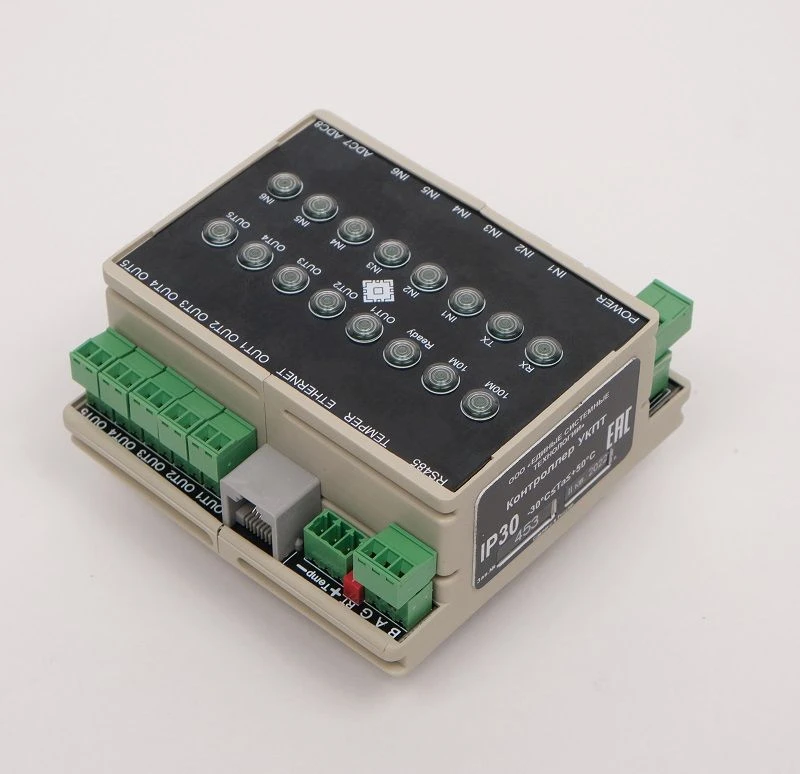

The universal controller is produced in a housing designed for mounting on a DIN rail. To place the controller in underground mine workings of mines and mines, the degree of protection from external influences of the housing should be not less than IP54 according to GOST 14254-2015 (IEC 60529:2013). In mine workings of mines and mines, the controller must be mounted on a DIN rail inside a box or cabinet designed to be placed in an area with IP degree of protection corresponding to the room category. The Ethernet and RS485 interface connectors are located on the upper side of the controller. The Ethernet interface of the controller provides information exchange with the head equipment of the system via LAN. The RS485 bus interface of the controller provides information exchange with the devices of registration with the "radio storax" (positioning receivers URPT). On the lower and upper sides of the controller there are terminals for connection of sensors and actuators.
