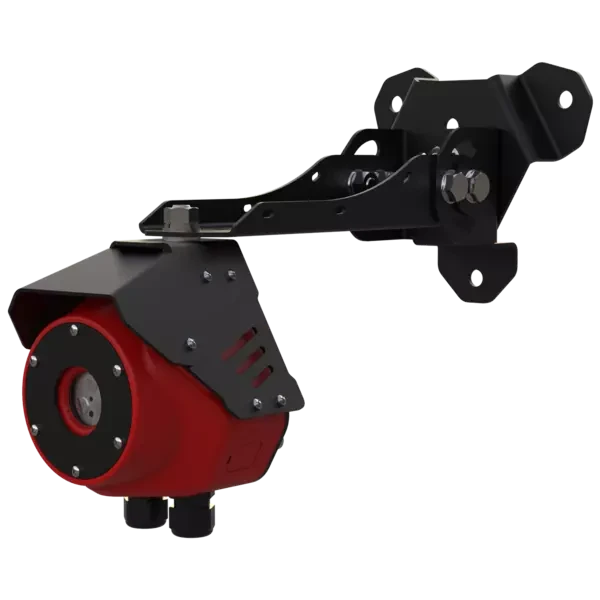

IP 330-2-1-485 (RO-R ASPZ) Mine flame detector special explosion-proof.

Fire Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

IP 330-2-1-485 (RO ASPZ) is designed to detect fires accompanied by the appearance of electromagnetic radiation of the flame source, located in the field of view of the IPP, as well as to provide information interaction with the reception and control devices of the fire alarm system via wired interface RS-485.

Technical Specifications

Explosion protection marking	RO Ex ia I M
Operating temperature	-20...60 °C
Degree of protection against external influences	IP65 (external side)
Protection class against electric shock	III
Rated voltage of the DC power supply circuit	B1/B8 2100/900 MHz V
Maximum power consumption, max.	0.11 W
Connection interface	RS-485 wired interface - 1 channel
Maximum spectral sensitivity:	First reference IR channel: 4.0 µm; Second reference IR channel: 5.0 µm; Measuring IR channel: 4.4 µm
IPP sensitivity (distance at which a stable operation is ensured) for test hearth TP-5, TP-6, not less than	25 m
Triggering time from test foci TP-5, TP-6, no more than	30
Maximum permissible value of background illumination (from fluorescent lamps), not less:	2500
Maximum permissible value of background illumination (from incandescent lamps), not less:	250
Viewing angle relative to the optical axis of the sensing element, not less than	Flat grinder, Specialised grinder
Time of voltage removal for transfer from the "Fire" mode to the standby mode, not less than	3
Duty mode restoration time after power supply voltage removal, not more than	2
Overall dimensions	170 x 260 x 360 mm (with bracket); 140 x 170 x 105 mm (without bracket)
Weight, not more	2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
