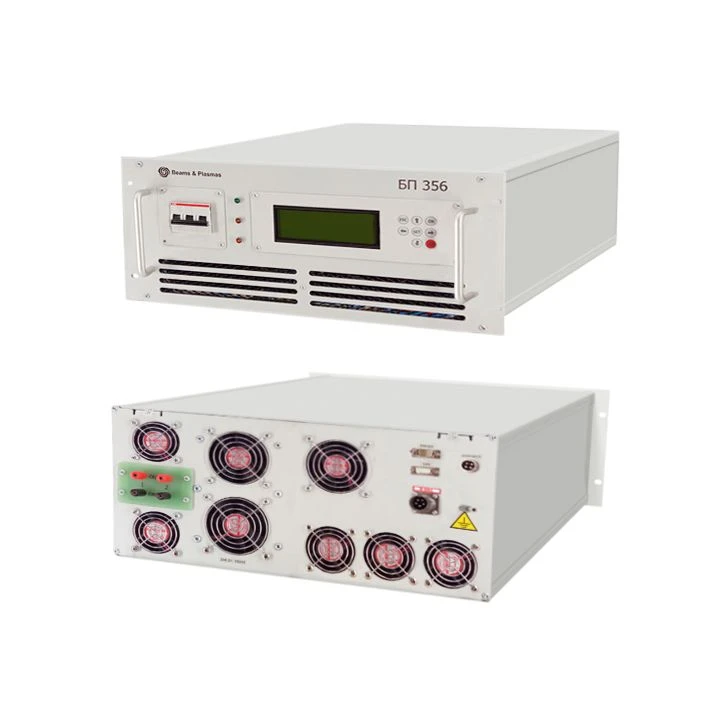

The unit is designed for regulated DC voltage power supply of ion sources with power up to 3 KW used in vacuum coating plants.

The power supply unit is equipped with:
- RS-485 interface for communication with a computer
- Modbus RTU control
- voltage stabilisation mode with current limitation
- output voltage converter
- controller with display and controls
- gas supply control and monitoring system
- two channels for control: two PWGs and/or two shut-off valves in the vacuum unit

Operation manual is available on request: LCMK.356.00.00.00.00-01 RE ION SOURCE POWER SUPPLY UNIT BP 356
It is allowed to deliver the device as a part of the installation without packing.
On request, standard modernisation of the device by the manufacturer is possible.

Technical Specifications

Assignment	Supply of regulated DC voltage power for ion sources up to 3 KW used in vacuum coating systems.
Dustproof	Yes - The unit housing is made of metal and has no exposed live parts
Front panel control	Got it
Type of construction	Built-in, Stationary
Warranty period	1 a
Climatic designs	GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2
Power supply voltage	380 ±10% V
Voltage regulation range	1000-3000 V
Current control range	0,1-1 A
Power control range	100-3000 W
Maximum power	3 per channel kW
Maximum power output	6000 W
Stabilization modes	Voltage, current
Output voltage polarity	Positive
Accuracy of stabilized parameter maintenance, not worse than	5 %
Number of channels	2 pc
Interface	RS-485
Data transfer protocol	ModBus RTU
Cooling	Air
Overall dimensions, (length x width x height)	5U 485 x 485 x 221 mm
Weight, not more	20 kg
