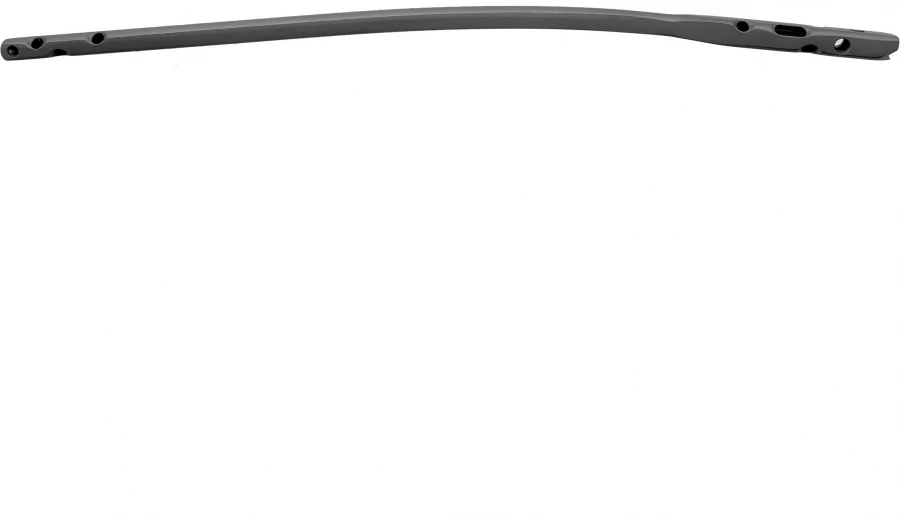

Intramedullary tibial pins Ø 8 mm, length 270 to 330 mm, 15 mm pitch, item No. 615.2XX

Application: simple, fragmentary and compound tibial fractures. The shape is anatomically curved according to the shape of the tibial intramedullary canal. Curvature in the sagittal plane. Anatomical bend at R600 mm to the distal part. Universal design for right and left limb. Locking holes in the proximal part. Hole at an angle of 45° to the longitudinal axis of the pin. Tapered bevelling to the front in the proximal part of the pin. Oblong locking hole in the proximal part. Locking holes in the distal end. The distal end has the shape of a cylinder truncated into a triangle. The 2 holes in the distal part, located at the same level, have two inlets and one outlet. Laser marking of diameter and length on the product.
