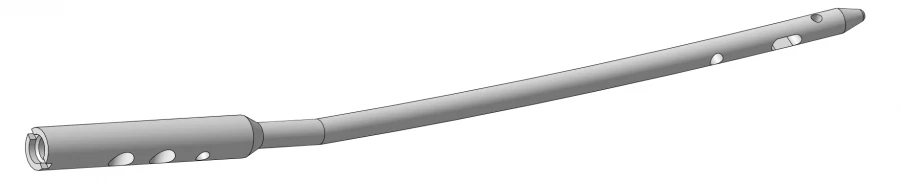

Femoral antegrade pins, right Ø 11 mm, length 300 to 480 mm, 20 mm pitch, article 654.XXXR

Application: for intramedullary osteosynthesis of proximal femoral fractures and fractures extending into the diaphysis. Bend R1500mm in the distal part. Separate design for right and left limbs. Possibility of inserting Ø5 mm locking screws in the distal part. For interfragmentary compression and dynamic blocking there is an oblong hole in the distal part. The distal end of the pin is tapered. The distal holes have an anteversion of 15? to the plane of the neck screws. For static locking of the pin, it is possible to insert Ø5 mm neck screws for locking in the proximal part. It is possible to insert Ø5 mm proximal locking screws. M10 internal hole in the proximal end. Laser marking of diameter and length on the product. This is a single-use item, to be sterilised before use.
