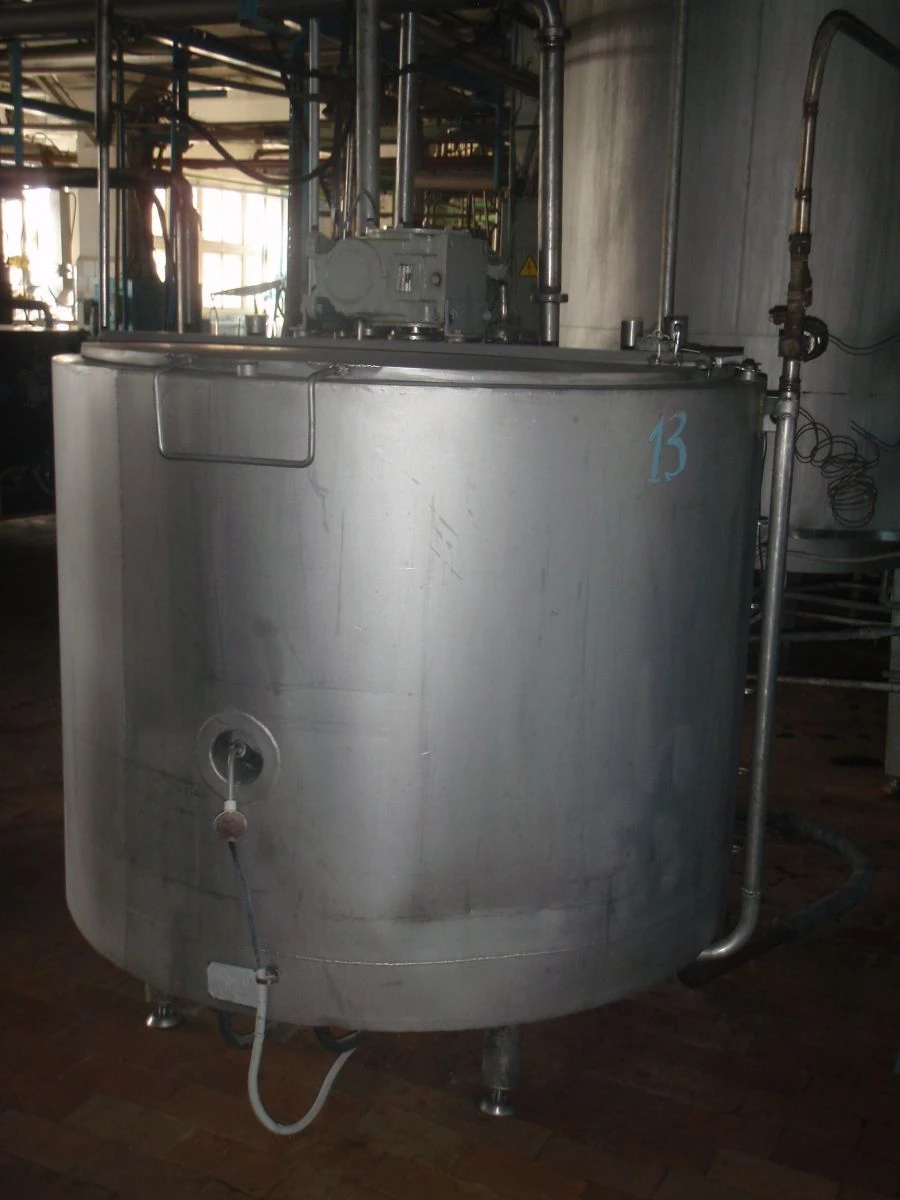

Intermediate tank type OVN,OBP and its modifications

Reservoir type OVN, OBP is designed for storage and processing of milk, dairy products.
Type-vertical, with cooling system
Geometric capacity up to 1,25 m3
Working capacity up to 1,0 m3
The nominal passage of filling spigot 50 mm
Conditional passage of emptying branch pipe 50 mm
Thickness of thermal insulation layer 50 mm
Installed agitator drive power 1,1 kW
Agitator speed 18 rpm
Specific passage of the refrigerant inlet 50 mm
Pressure of incoming heat-cooled refrigerant is not more than 0,25(2,5) MPa (kgf/cm2),
Heat refrigerant-water
Specific passage of the cleaning solutions supply branch pipe 50 mm
Washing solution pressure not less than 0,3(3,0) MPa (kg/cm2),
Overall dimensions, mm not more:
Width-1430
outer diameter-1330
height-2130
Weight not more than 400 kg
Warranty period of operation - 12 months from the date of putting the cooler into operation, but not more than 15 months from the date of shipment from the manufacturer.
Service life-10 years
