Interface module KIC550

Computer Parts Modules

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

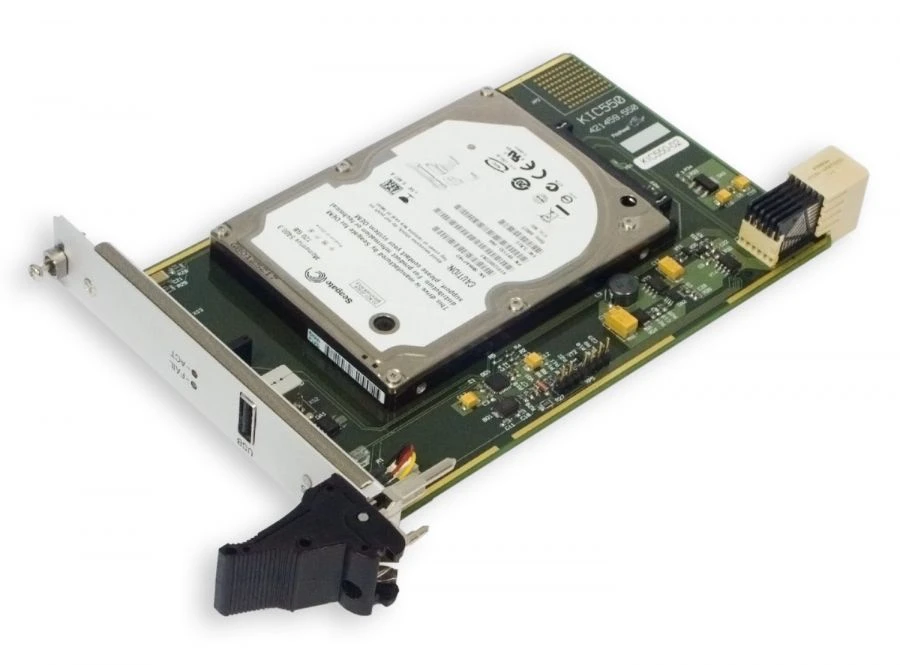

The KIC550/KIC550RC interface module is designed to extend the functionality of CPC510/CPC510RC, CPC512/CPC512RC and other processor modules that comply with the Compact PCI Serial specification. The use of this module will enable the creation of complete high-performance and highly reliable computing systems. The module is currently available for air-cooled operation (KIC550) and for conduction-cooled operation (KIC550RC).

Technical Specifications

Designation	KIC550
Adapter for installing SATA 2.5" HDDs	Supports SATA, SATA II, SATA III hard drives with overall dimensions of 100x70x9.5mm (2.5"); Supports HDD power management; Supports SGPIO interface. Indication of drive statuses; ability to work in slots with support for the
Adapter for CFast card installation	Support for CFast cards with SATA 6 Gb/sec interface; complies with CFast Revision 1.1 specification; 3M's N7G24 24-pin connector with left-handed extractor; brought to the front panel; can work in slots supporting S interfaces
Additional features	CFast card extractor button, CFast card insertion/removal window and HDD status indicators are displayed on the front panel of the module; the card insertion window is closed with a sealing cover
Supported standards	SFF-8485 Specification for Serial GPIO (SGPIO) Bus; PICMG CPCI-S.0 R2.0 June 12, 2015; Universal Serial Bus 3.0 Specification. Rev. 1.0; CFast Specification Revision 1.1
Operating temperature range	from minus 40°C to plus 85°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
