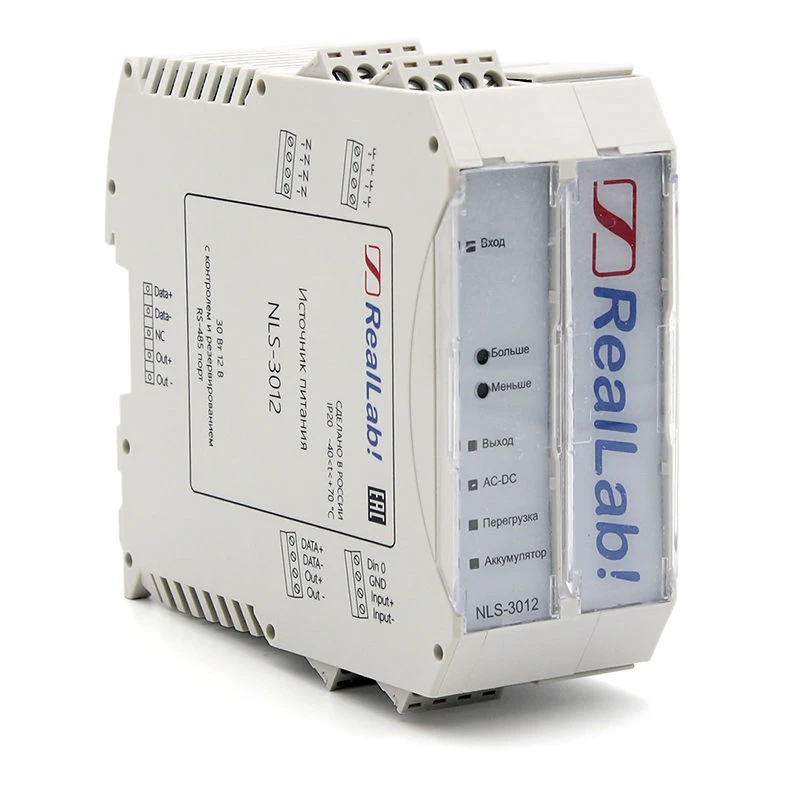

Intelligent Power Supply with RS-485 Interface NLS-3012 for Efficient Monitoring

Purpose: intelligent power supply with RS-485 interface Monitoring: status monitoring and control via RS-485 interface Input voltages: extended input voltage range: from ~90 to ~265V Output voltage: output voltage 12V, power 30W Efficiency:80 - 89% at maximum load Temperature: temperature range from -40C to +70C Battery: possibility to connect backup battery Indication: operation indication Connectors: split terminal connectors Signal filtering: input filter Galvanic isolation: galvanic isolation of output Overload protection: short-circuit and overcurrent protection Design: slot design, bus connector for RS-485 interface and power output OKPD2 Code:26.20.40 Mounting: din-rail or panel mounting Dimensions (HxWxG): 109x45x113 Warranty: 18 months
