Available for Import
Integrated road machine KDM-320-43
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

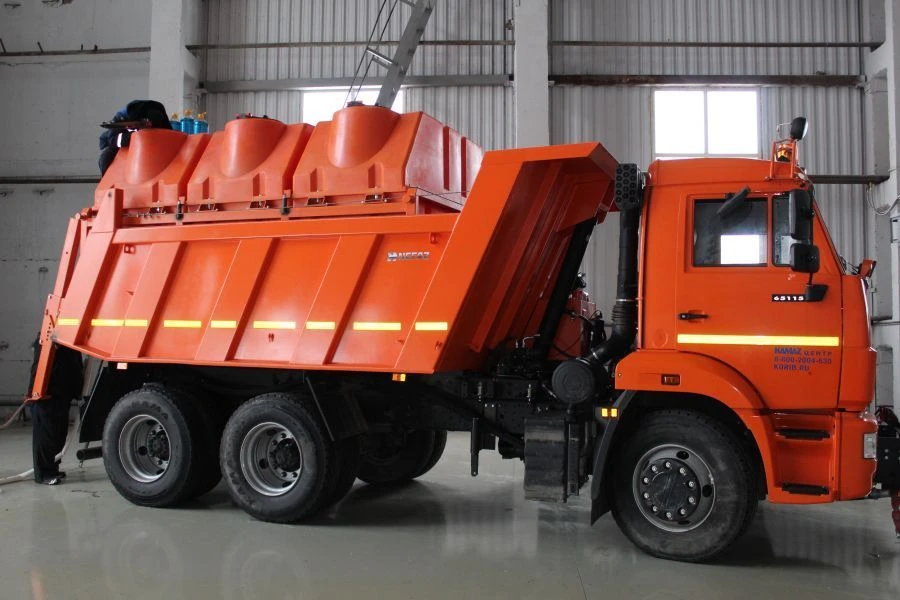

Designed to perform maintenance work on paved roads. The tipper platform is adapted for installation of equipment without the use of lifting means, for which purpose the equipment installed in the tipper body is equipped with a system consisting of four supports - two folding and two retractable. The tipper platform of the machine is equipped with units for securing the equipment installed on it. Designed for water washing of road surfaces, watering of green areas, fire extinguishing and air irrigation. The comb with nozzles is mounted on the front bracket of the machine.
Specifications
Type of product according to PP RF 616
Vehicles for public utilities and road maintenance
Type of equipment of the combined road machine
complete with water washing equipment and front speed blade
Machine type
complete road machine
Availability of air conditioning system
depending on the chassis purchased
Availability of heater
availability
Climatic version
UHL 1
Wheel arrangement
6?4
Tank volume
8.4
Rated motor power (her)
Flat grinder, Specialised grinder hp
Engine type
Diesel
Base chassis type
dump truck kamaz 65115 in modifications: 65115-a5; 65115-50; 65115-rr; 65115-rs
Permitted maximum transport speed
60
Gross weight
20882 kg
Overall dimensions /length/height/width
8600/3550/3600 mm
Washing equipment / drive
Hydraulic
Water-washing equipment (maximum pressure at washing)
2.5 MPa
Удельный расход воды при максимальной давлении и максимальной рабочей скорости/ на метр
300
Front brush drive
Hydraulic
Front brush / height of the processed strip, at least
1.55 m
Front brush / brush speed under load, max.
300
Maximum performance / front brush
41250
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
