Insulated Self-Supporting Conductors SIP-2 for Overhead Power Lines
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Insulated Self-Supporting Conductors for Overhead Power Lines SIP-2 Available for Import

Insulated Self-Supporting Conductors SIP-2 for Reliable Power Transmission

Aluminium Power Cables 1kV
Manufacturer: Samara Cable Company OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Self-supporting insulated, non-combustible wires for overhead power lines CIPn-2 Self-supporting insulated, non-combustible wires for overhead power lines CIPn-1

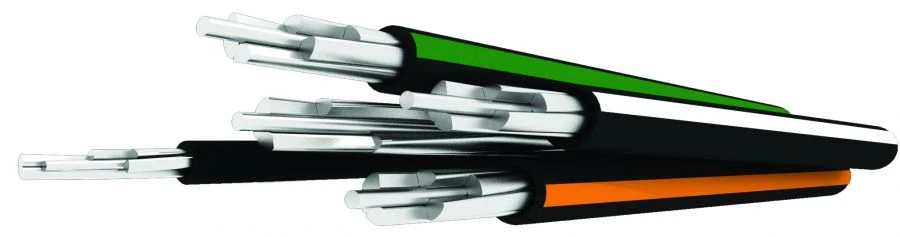

Description

  1. conductive phase or auxiliary conductor - twisted from round aluminium wires, has a round shape, sealed.
  2. conductive carrier core - twisted from round aluminium alloy wires.
  3. core insulation is made of light-stabilised cross-linked polyethylene.
Insulated phase conductors have distinctive colours. Auxiliary conductors are digitally marked. The surface of the carrier core is marked with marking data
  1. Twisting - insulated conductive conductors are twisted around the neutral conductor.

    The conductors are twisted in the right direction.</li> </ol>.

Specifications

Climatized version
?
Number of cores
1...7
TPJ cross-section
16...240 mm²
Nominal voltage
0.66 kV
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
