Instrumentation and control centre type 17 KIP.PTM

Control and measuring point type 17 KIP.PTM is designed for application at gas distribution facilities, for marking pipeline routes, as well as for monitoring and control of electrochemical protection parameters, operated in conditions of temperate climate (U), cold climate (CL), temperate and cold climate (UHL) in accordance with GOST 15150.

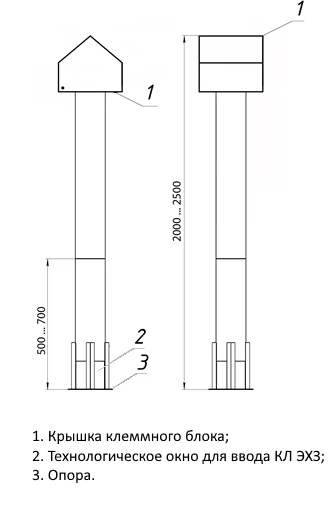

Type 17 KIP.PTM is a round metal rack Ø159-220 mm with a wall thickness of at least 3.5 mm, for buried installation in the ground above an underground structure, in the upper part of which is made a header with a double-sloped roof, with a control panel and contact clamps (terminals). The support in the lower part of the metal instrumentation rack structure shall have a square shape with a side of at least 300 mm for installation (concreting) into the ground.
