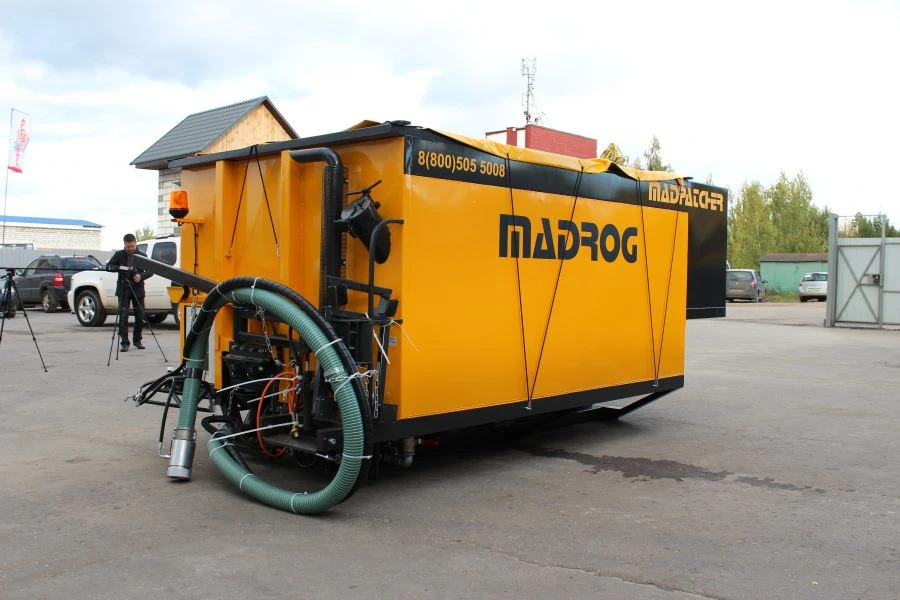

Installation for patching repair (pneumatic spraying method) Madpatcher
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Applied on urban roads and motorways. The jet-injection method (repair with emulsion and crushed stone) has proved itself for many years all over the world
Technical Specifications
| Purpose | Road patching by jet-injection method with a mixture of crushed stone and bitumen emulsion. |
|---|---|
| Maximum capacity of ready mix equipment per hour, m³. | 2 |
| Dimensions - length | 4250 mm |
| Dimensions - width | 2290 mm |
| Dimensions - height | 2100 mm |
| Weight | 3200 kg |
| Engine type | Diesel |
| Engine cooling | Liquid |
| Number of engine cylinders | 3...4 pc |
| Motor power | 25...40 hp |
| Fuel tank capacity | 40 l |
| Computer control | availability |
| Location of the fuel tank filler neck | Rear (on the operator boom side) |
| Blower drive | Two V-belts from the engine |
| Emulsion flow adjustment with emulsion feed pump | stepless |
| Maximum blower pressure mbar. | 800 |
| Maximum blower capacity m3/min. | 10.3 |
| Maximum capacity of the emulsion pump, l/min. | 5.7 |
| The following processes can be electronically controlled from the operator panel | Emulsion pump on/off, emulsion pump capacity adjustment, internal combustion engine speed adjustment, auger speed adjustment, auger stop, engine economy mode on, audible alarm |
| Placement of the operator panel | On the boom |
| Raising and lowering the operator boom | ?????????????? |
| Positioning of the operator boom | rear |
| Boom swing angle | 240 |
| Feed hose length | 4 m |
| Feed hose diameter | 80 mm |
| Sleeve material | Reinforced PVC plastic |
| Number of crushed stone hopper compartments | 1 pc |
| Crushed stone hopper compartment volume | 6.5 |
| Crushed stone hopper awning | availability |
| Enclosed compartment for transportation and storage of equipment | availability |
| Emulsion tank volume | 1300 l |
| Emulsion tank insulation | mineral wool |
| Emulsion level indicator | availability |
| Emulsion tank filler neck location | Rear (on the operator boom side) |
| Gas burner for initial heating of emulsion | availability |
| Heat exchanger for permanent emulsion heating, utilizing heat from the engine coolant while the engine is running | availability |
| Tank capacity for flushing and preserving the emulsion system | 40 l |
| Location of the cleaning system tank filler neck | Rear (on the operator boom side) |
| Number of augers metering crushed stone | 1 pc |
| Screw drive | Hydraulic |
| Screw speed adjustment | stepless |
| Operating instructions and spare parts catalog in Russian in hard copy and electronic format | availability |
| Mounting kit for installation of pit repairer in dump truck body | Subframe; plates against lateral displacement, not less than 2 pcs.; ladders for fastening in assembly, not less than 6 pcs. |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
