Inspection mobile system "Railway Inspection" CRPA.421423.024
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

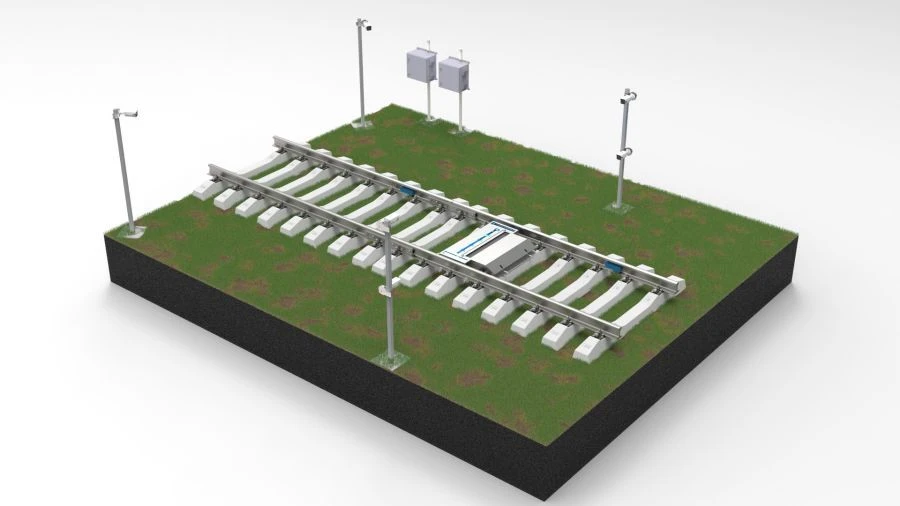

The inspection mobile system "??-???????" is a modern automated inspection detection system of scanning type.
The AMF is designed for:
- control of open and viewed from the lower projection parts of the structure of the railway train (bottom);
- detection of foreign objects (bookmarks, prohibited items) with simultaneous fixation of carriage number plates;
- transfer, storage and processing of the received data (images) and information on the railway train inspection on the ARM-O.
AMF is placed at railway checkpoints located at the boundaries (perimeters) of facilities of any types and departments using 1520 mm gauge railways.
The AMF is designed for:
- control of open and viewed from the lower projection parts of the structure of the railway train (bottom);
- detection of foreign objects (bookmarks, prohibited items) with simultaneous fixation of carriage number plates;
- transfer, storage and processing of the received data (images) and information on the railway train inspection on the ARM-O.
AMF is placed at railway checkpoints located at the boundaries (perimeters) of facilities of any types and departments using 1520 mm gauge railways.
Specifications
Maximum travelling speed of the WDD being inspected
no more than 40
Time of issuing the result of scanning the next car (locomotive) of the WDW
Not more than 10 s after the end of scanning of a given carriage (locomotive)
AMF readiness time after switching on the power supply
No more than 5
Continuous operation time of AMF
Round the clock
AMF power supply
From single-phase AC mains with voltage (220 ± 22) V, frequency (50 ± 1) Hz
Power consumed by AMF
No more than 2 kW
Operating conditions of AMF products installed in heated rooms (ARM-O)
operating temperature from +5 °C to +40 °C; limit temperature from -40 °C to +50 °C; relative humidity not more than 80 % at 25 °C
Operating conditions of AMF products installed outdoors (DB, control cabinet, illumination units, presence sensors).
operating temperature -40 °C to +50 °C; limit temperature -40 °C to +50 °C
Share your requirements for a quick response!
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
