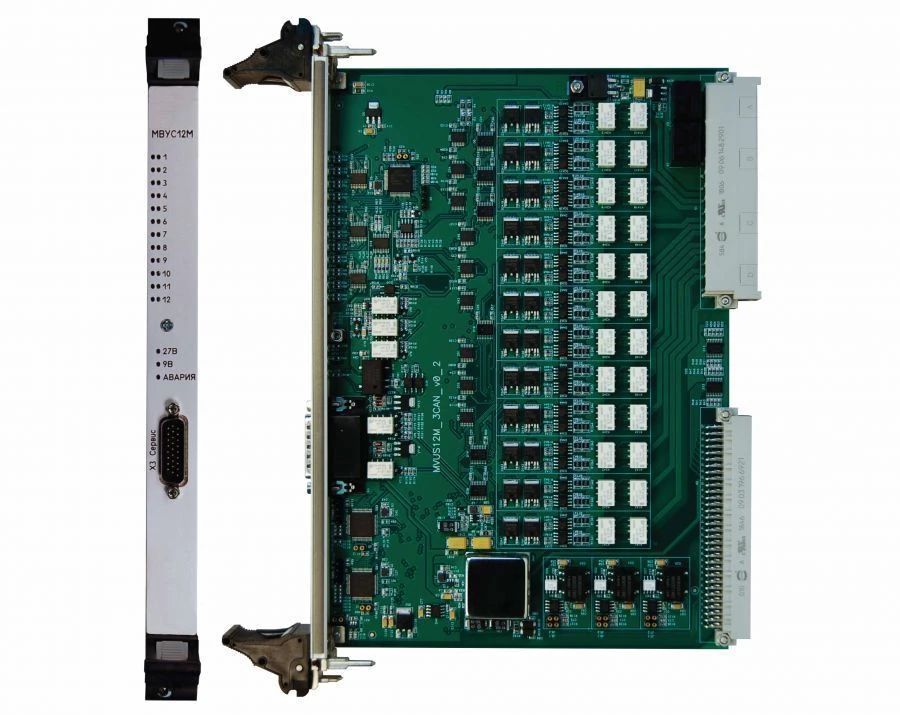

Input/Output Module MVUS12M for Reliable Load Switching and Control

The module is designed for switching loads (IO - executive body) with supply voltage 15-36 V with galvanic isolation from the module supply buses. The module provides: <ul> <li>- Data exchange with computing modules via serial inter-module CAN bus (specification 2.0B) using trans-port protocol udpb;</li> <li>Independent two-pole switching of 12 loads with operating current each up to 2.0A;</li> <li>Short-circuit protection (hereinafter referred to as short-circuit protection) of the loads channel by channel with regard to the preset setting (see Note on page 11);</li> <li>Loads breakage diagnostics in switched off state with 1mA test current;</li> <li>Load switching switches short-circuit diagnostics without switching to the test mode;</li> <li>Diagnostics of insulation resistance of connected loads;</li> <li>Signalling the switching on of each load and the presence of a fault (short circuit) with the help of LEDs on the front panel of the module.</li> </ul>
