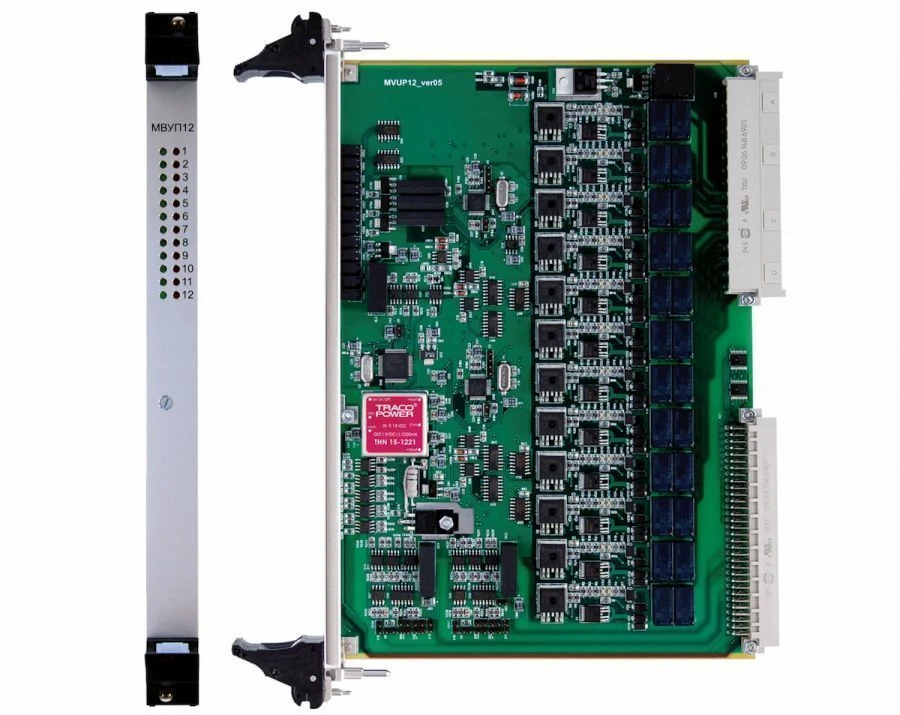

Input/Output Module MVUP12 for Independent Load Switching

The MVUP12 module is designed for switching several loads with supply voltage 15-40 V with galvanic isolation. The module provides: <ul> <li>- Independent two-pole switching of 12 loads with operating current of each up to 2.4A;</li> <li>Short-circuit protection in switched on and switched off state of loads;</li> <li>Diagnostics of load breakage in the on and off state of loads;</li> <li>Signalling of insulation breakdown of connected loads;</li> <li>Signalling the switching on of each load and the presence of a fault (open or short-circuit) by means of a set of LEDs on the front panel of the module;</li> <li>Allows to monitor the status of connected loads by measuring their load current when switched on and their active resistance when switched off.</li> </ul>The module is designed for operation as part of the on-board equipment of automatic and automated control systems operating in difficult operating conditions.
