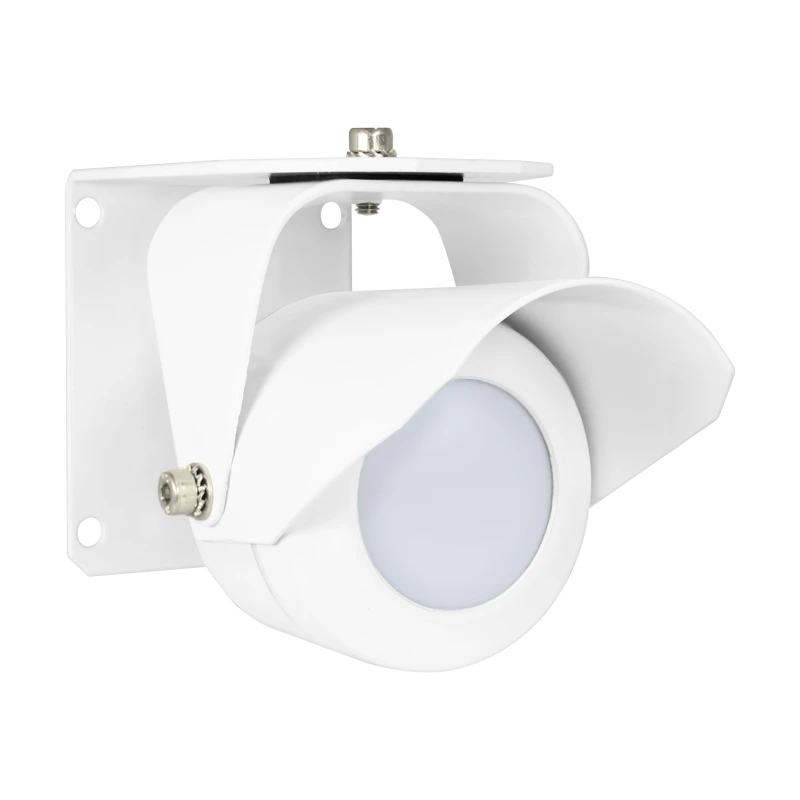

Infrared addressable fire flame detector IP 330-1-1 "?2000-PL" ATSDR.425241.001

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed to detect fires accompanied by the appearance of infrared radiation of the flame centre, and the issuance of notices "Fire". The detector operates under the control of controllers of two-wire communication line as part of the integrated security system "Orion". The detector should be used if in the area of control in the event of a fire in its initial stages is expected to appear open flame, as well as in the presence of flame burning, when the height of the room exceeds the limit values for the use of smoke or heat detectors.

Technical Specifications

DC power supply voltage	8 to 11 V
Consumption current	max. 0.5 mA
Maximum spectral sensitivity	4.5 mcm
Sensitivity (foci TP5/TP6)	25 ?
Inertia	Not more than 30 s
Viewing angle	70°
Resistance to direct light (incandescent)	250 lc
Resistance to direct light (fluorescent lamp)	2500 lk
Rate of change of ambient temperature	-0,5...+1 °C/min
Protection degree of the shell according to GOST 14254-2015	IP65
Overall dimensions of the device	Not more than 109x82x72mm
Instrument weight	max. 0.4 kg
Average lifetime of the device	10 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
