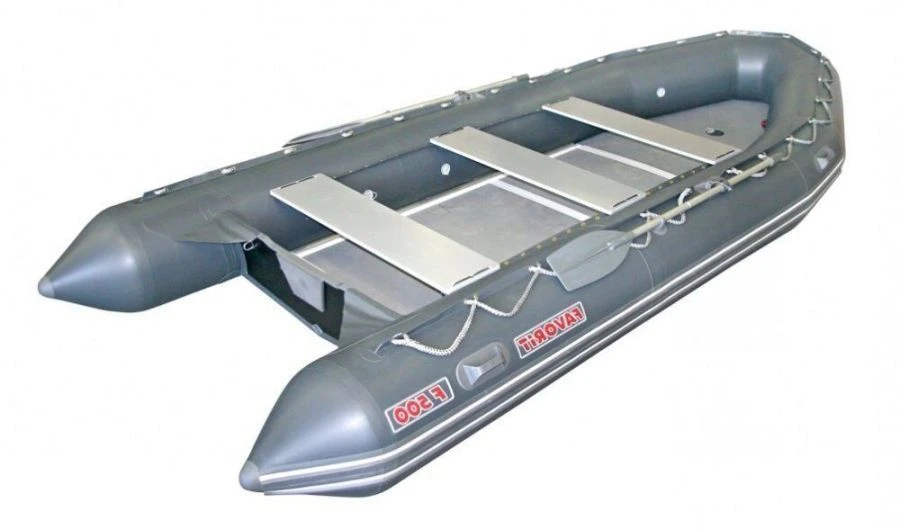

Inflatable duty boat Favourite F-500 E

The Product can be used for tourism, walking, recreation and fishing, as well as a service and travelling vessel.


1.Overall length (L d), mm 5000 ± 0.0
2.Overall width (H d), mm 2000 ± 30
3.Overall height (H d ), mm 1300 ± 20
4.Cockpit length mm 3500 ± 50
5.Maximum load-carrying capacity (F max), not less, kg 1320 ± 5
6.Displacement in full load (D), not more, kg 1325 ± 10
7.Weight of the product, not more, kg 130 ± 5
8.Operating temperature range of ambient air, °? -30 °? + 45 °?
9.Total volume of the inflatable cylinder, (W), m3 1,97 ± 0,1
10.Passenger capacity, (k), persons 8
11.Maximum power of hp*, (N max), hp (kW) 40,0 (29,0)
12.Working pressure in the inflatable cylinder, (W working), kPa 15,2 ± 1
13.Number of inflatable cylinder compartments, (n), pcs. 5
14.Cylinder diameter at midships, (d), m 0.50 ± 0.05
15.Average draft at full displacement, (h cf), mm 120 ± 10.
