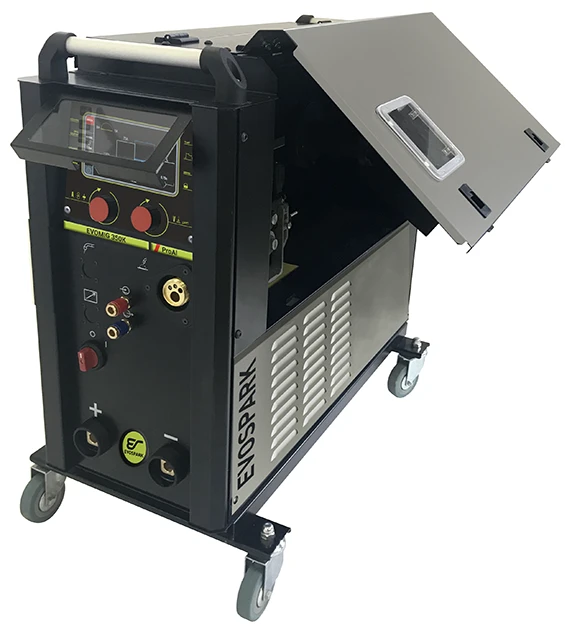

Industrial Inverter Welding Machine EVOMIG 350K for Manual and Semi-Automatic Welding

Electric Welding Machines

Manufacturer: ZTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 350A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).

It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control cycle of welding arc parameters is 6.6 µs.

Structurally designed in a monoblock design - the welding wire feeder and the power source are placed in one housing. It is completed with the system of remote control and documentation of parameters of WeldWeb PAC.

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

25 A

Operating voltage

380 V

Rated welding current

350 A

Manual arc welding

20-350 ?

Weight

55.5 kg

Maximum power consumption, kW

12.2

Operating modes (continuous/pulse)

pulsed and short-pulsed

Length

740 mm

Width

300 mm

Height

660 mm

No-load voltage

93 V

Maximum welding current

350 A

Type of welding current

permanent

Semi-automatic welding

25-350 ?

argon-arc welding

3-350 ?

AC mains supply voltage

300...500 V

Mains frequency

50...60

Type of welding voltage regulation

smooth

Load Duration (LL)

100 %

Dimensions

740x300x660 mm

Mark

evospark

Equipment

power source, integrated wire feeder upp, liquid cooling unit bjo mig, cylinder trolley, welding torch, ground cable, cable package, remote parameter control system pac weld web

Current intensity at 100% SP

350 A

Insulation class

Degree of protection

ip 34

EFFICIENCY

96 %

Cos f

0,99

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
