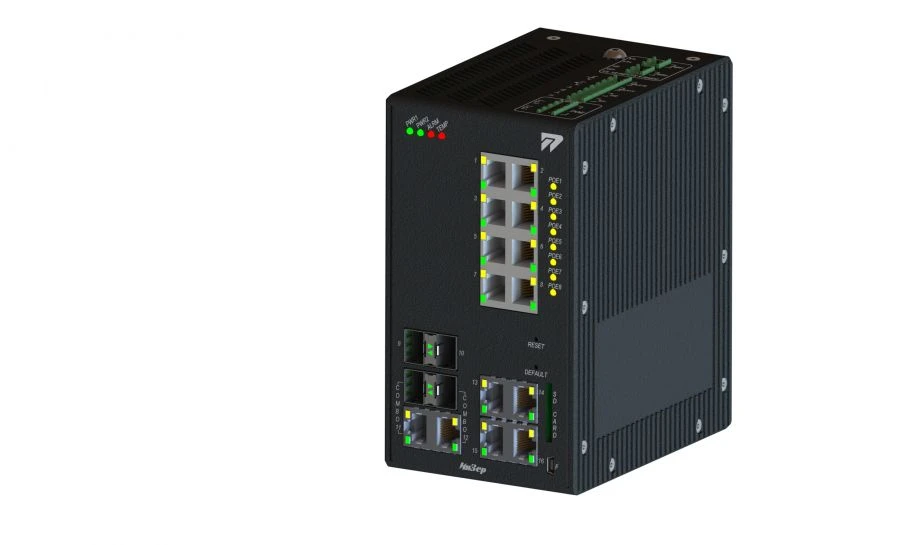

Industrial Ethernet Switch with PoE Support - InZer-2412PGE for Data Network Routing

Digital Transport Systems

Manufacturer: POLYGON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Equipment for switching and routing packets of information of data networks (Ethernet L2/L3 switch with support for RoE). Industrial switch with IP30 enclosure protection degree, resistant to external influences, supports 8 interfaces 10/100/1000 BASE-T with PoE+ technology, 4 interfaces 10/100/1000 BASE-T, 2 Combo-interfaces 100/1000 BASE-T, 100/1000 BASE-X and 2 interfaces 100/1000/2500 BASE-X. Used in the creation of fault-tolerant industrial transmission networks.

Two power inputs, fanless design. DIN-rail mounting. Maximum PoE power output per port: 25.5 W.

POE budget 204 W. Variants of switch power supply - 24/48 V, subsystem POE-48 V.

Specifications

Connector type

RJ45, SFP

Form factor

DIN

Data transfer rate

Maximum signal transmission distance

200

Maximum data transfer rate

2500000

User interfaces

RJ45, SFP, RS232/485

Support for quality of service mechanisms

Armoured glass

Management and control of work

CLI, WEB, SNMP

Power supply voltage

48 V

Placement

DIN rail

Number of Ethernet ports

16 pcs

Number of RS-422/232 interfaces

1 pcs

Number of RS-485 interfaces

1 pcs

RS-485 baud rate

115.2

Supported protocols

Spanning Tree Fast Link option, STP Root Guard, BPDU Filtering, STP BPDU Guard, Loopback Detection, Voice VLAN, Guest VLAN, Private VLAN, GVRP, SPAN, RSPAN, sFlow, IGMP Snooping v1,2,3, IGMP Snooping Fast Leave, SNMPv2c,v3, ACL, ERPSv2, QoS, QinQ

Possibility to modify VPO according to customer's requirements

Armoured glass

Availability of optical control channel

Redundancy of the control unit

Availability of power supply redundancy

Armoured glass

Client interfaces

RJ45, SFP, RS232/485

Configuration with separate control processor

Supported single optical wavelength data rates (list)

2.5

LAN port speed, Mbps

10/100

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
