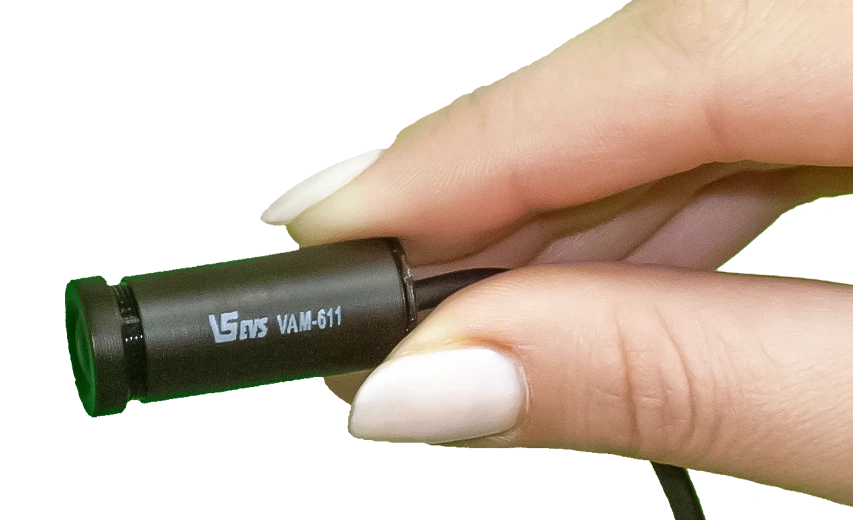

Indoor Black and White Television Camera VAM-611 for Effective Monitoring

Television Video Cameras

Manufacturer:EVS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for observation of objects indoors at air temperature from +5°C to +45°C, relative humidity dl 90%, atmospheric pressure from 720 to 780 mm Hg. It can be used in vision systems in households, medicine and industry. The image can be displayed on monitor, TV or computer screens. The camera has a digital video signal processing path and is characterised by high stability of operation and optimality of parameters in the automatic control mode (accumulation time, gain).

Specifications

Decomposition parameters

CCIR standard (625 lines, 25 frames per second)

Decomposition

Interslaced 2;1

Photodetector

CMOS-matrix MICRON format 1/4" (3,6x2,7 mm). Number of elements 640x480)

Synchronization

Internal

Field of view angle

Defined by M12 standard lens with a focal length of 3.6 mm to 12 mm, which provide a diagonal field of view of 50 to 20 angular degrees.

Sensitivity

Not worse than 0,03 lux at signal/noise ratio equal to 10 and relative aperture of the lens 1;2,0.

Maximum illumination of the observed object

Not less than 100 000 lux at the ratio of "vertical smear" voltage to the object voltage 10%

Current consumption

Not more than 30 mA at a supply voltage of +12 volts. The camera is operable at supply voltages from 4 to 16 volts.

External dimensions without bracket and lens

Diameter 14mm, Length 26.5mm

Weight

Not more than 20 grams
