Impulse Magnetron MI-460B with Auto-Electronic Start

Available for Import

Impulse Magnetron MI-460B for Efficient Industrial Applications

Microwave Tubes & Amplifiers

Manufacturer: PLUTON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Pulsed magnetron MI-461B Pulse magnetron MI-461B Pulse magnetron MI-460B

Description

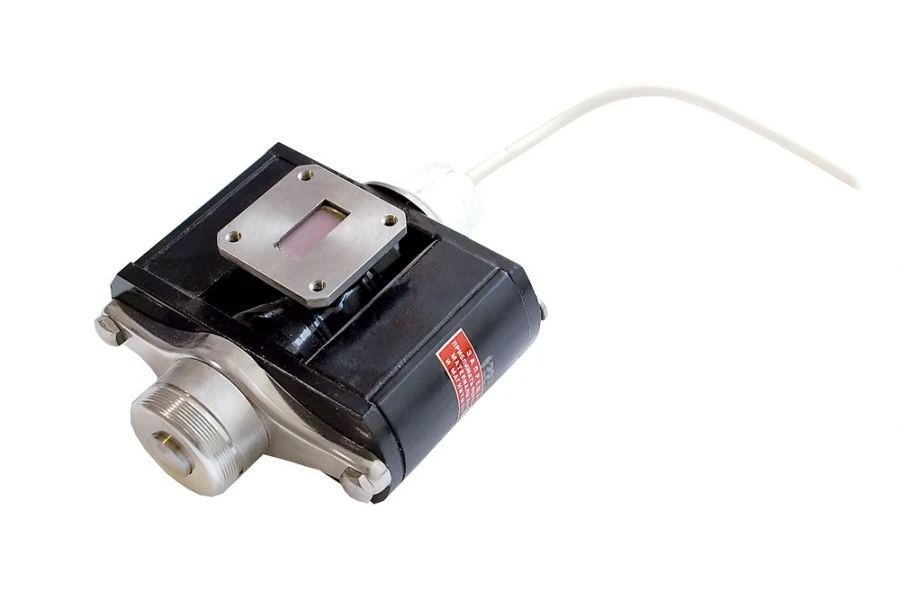

Magnetron MI - 460B of pulse action, with a cathode without a cathode, auto-electronic start, packaged construction, 3 cm wavelength range, operating at a fixed frequency, output pulse power not less than 20 kW, intended for operation as a generator of high-frequency energy in the equipment of national and economic purpose.

Specifications

Center frequency of the operating frequency range

9050

Weight

1.2 kg

Dimensions, DxWxH

145×71×122 mm

Gamma percent MTBF

3000

Anode current

6.8...10.2 A

Anode voltage

7.2...8.3 kV

Output power

25 kW

Operating frequency range

9.035...9.065

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
