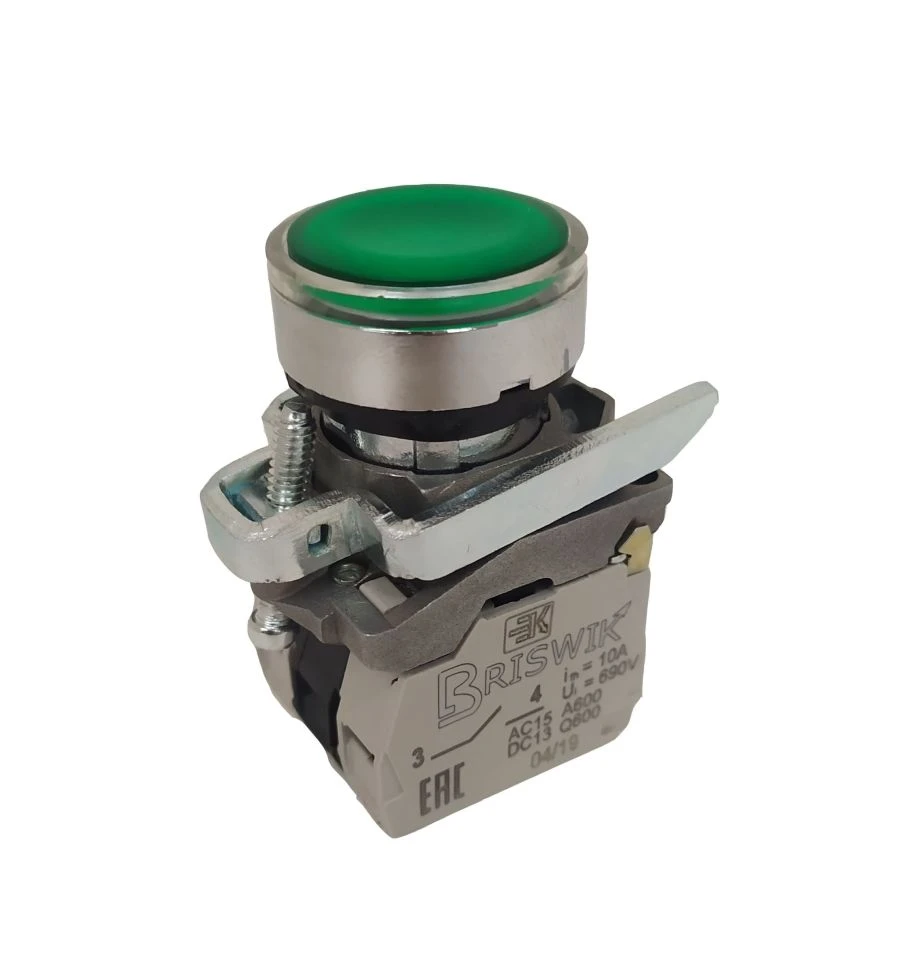

Illuminated Push Button Switch with Cylindrical Plunger 22mm for Control Applications

Button switches of KMEM 4LC series (red, green, white, blue, yellow colour, 24V, 230V) consist of a control device (actuator) and unified detachable blocks (modules) of closing and opening type contacts (specify when ordering), intended for switching of electric control circuits of alternating current up to 660V, frequency 50 and 60 Hz and direct current up to 440V. Can be supplied as assembled - drive with modules (contact blocks), and separately. Operating conditions . Switches and switches are made in versions for temperate (U), tropical (T) and temperate cold (UHL), including for ships of unlimited navigation area (OM) climate and are designed to work in the following conditions: - Ambient air temperature from -50C to +55C; - Relative humidity of the environment not more than 90% at a temperature of 20C and not more than 50% at a temperature of 40C
